Description
Superior quality and ease of operation

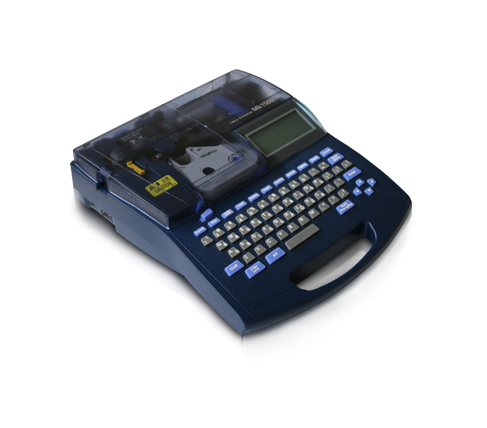

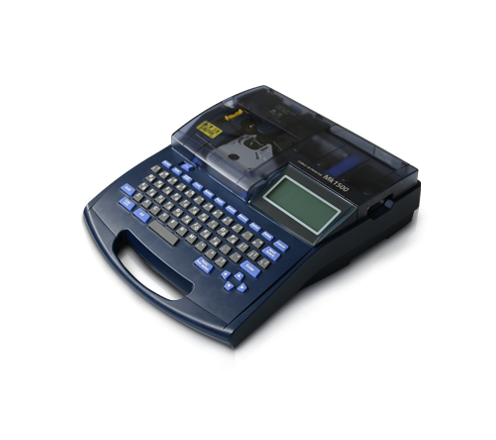

The MK1500 prints precise characters of up to 300dpi for tubes, labels and more. With a large LCD display and automatic full and half-cutting, it offers smooth and easy printing from start to finish.
- Automatic cutting / full-cut
- High speed and fast output rate 25mm/sec.
- Various print patterns
Print speed: 25mm per second
With a print speed of 25mm per second, the MK1500 ensures fast and high-quality output, hence fulfilling all your requirements. When printing a 20mm tube with 5 full-size characters and in consecutive print mode and with fast cutting, the MK1500 is able to deliver an impressive 35 pieces every minute.
Bright LCD display
Experience total ease of use with the printer’s bright and large backlit LCD screen with a display capacity of 10 characters/line x 2 lines at full-width or 20 characters/line x 2 lines at half-width. All necessary information such as ink ribbon type and remaining amount can be read clearly at a glance leaving no room for error.
Automatic cutting
Each segment is partially cut automatically as it prints. The segments are easily separated manually after they come out of the printer. The cutting operation for each job can be set for full-cut, halk-cut, no cut with marking, or not cut without marking.
| Printing Method | Thermal transfer | |
| Resolution | 300dpi | |
| Printing Speed | Tubes: | High: 25mm/sec. Standard: 18.5mm/sec. Low: 12.5mm/sec. |
| Labels: | High: 25mm/secs. Standard / Low: 12.5mm/sec. |
|
| Output Rate | High Mode: | 35pcs./min. |
| Standard Mode: | 30pcs./min. | |
| Low Mode: | 21pcs./min. | |
| (Printing 20mm tubes, 5 full-size characters, consecutive print mode, half-cutting) | ||
| Ink Ribbons | Exclusive cassette | |
| Black: | 100m | |
| White: | 85m | |
| Character Sizes | 2mm, 3mm, 6mm (full-width, half-width available for each) | |
| Input Modes | Alphanumeric, symbol input | |
| Display | LCD Graphic (160 x 64 dots) | |
| Display Capacity | 10 characters/line x 2 lines (full-width) or 20 characters/line x 2 lines (half-width) |
|
| Built-in Memory | Print-data: | Approx. 2,500 characters |
| Files: | Approx. 7,500 characters | |
| Service life of internal backup battery for data storage: | About 5 years | |
| Media Cutting Method | Automatic full-cutting, Automatic half-cutting | |
| Power Supply | Exclusive AC Adapter (Input voltage: AC 100V – 240V 50 / 60 Hz) | |
| Operating Environment | 15°C – 32.5°C (59°F – 90.5°F), 10% – 85% RH Range is lowered to 5°C (41°F) with Tube Warmer option installed |
|
| Storage Environment | 5°C – 32.5°C (41°F – 90.5°F), 10% – 90% RH |
|
| Dimensions (W x D x H) | 250 x 300 x 85mm (9.8 x 11.8 x 3.4in.) | |
| Weight | 2kg (4.4lb.) (printer only) | |
