Description

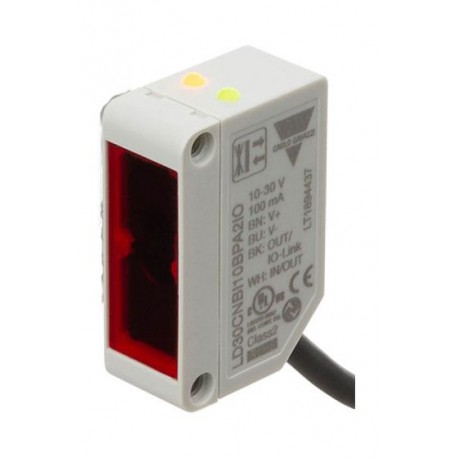

This sensor family with IO-link communication comes in a compact 10 x 30 x 20 mm ABS housing. They are designed for use in applications where high-accuracy detection as well as small size is required.
The compact design is also ideally suited to confined spaces and it has high power LED for excellent performance-size ratio.
• Easy customization to specific OEM requests by use of the build in IO-Link functionalities.
• The output can be operated either as a standard switching output or in IO-Link mode.
• Fully configurable via output IO-Link v 1.1. Electrical outputs can be configured as PNP / NPN / Push-Pull / External input, normally open or normally closed.
• Timer functions can be set, such as ON-delay, Off-delay, and one shots.
• Logging functions: Temperatures, detecting counter, power cycles and operating hours.
• Detection modes: Single point, two point and windows mode.
• Logic functions: AND, OR, XOR and Gated SR-FF.
• Analogue output: In IO-Link mode the sensor will generate 16 bit analogue process data output representing the distance to the object.
Connection Type
• Cable 2m
• Connector M8
