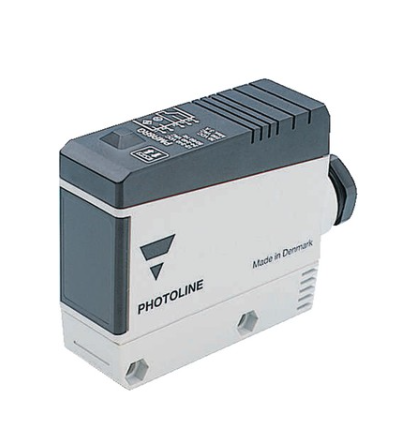

Polarized Retro-Reflective Sensor in Plastic Housing
Description
Transistor Output
Retro-reflective photoelectric switch with polarized light. Range up to 6 m. Fixed sensitivity. High immunity to ambient light. Output function switch selectable. Protection degree IP 67. Screw terminal connection. 25 x 65 x 81 mm polycarbonate housing. PG 13.5 or 1/2″ NPT cable gland.
Timer options: Delay on operate, delay on release, one shot (triggered on leading or trailing edge)
Relay Output
The PMP12 is a powerfull polarized retro reflective sensor. The sensor is designed to meet the hash requirements in industrial environments. With a sensing distance at 12 m the sensor is usefull in applications where dust and weather conditions will influence on the sensing distance. The sensor is made in a strong glass reinforced PC/ABS housing with two cable glands for easy connection.
Relay Output & Mute Input: With Mute Input on the transmitter the sensor fullfill European and North American regulations for Industrial doors.
Features
| Transistor Output | Relay Output | Mute Input |
| • Range: 6 m
• Modulated, visible light, polarized • Rated operational voltage: 10 to 40 VDC • Output: 200 mA, NPN or PNP • Make or break switching function (switch selectable) • Fully protected • LED-indication for target detected • High immunity to ambient light • 25 x 65 x 81 mm reinforced PC/ABS housing, IP 67 • Timer options (adjustable) |
• Range: 12 m
• Modulated, visible light, polarized • Make or break switching function (switch selectable) • LED-indication for target detected • Multi supply voltage: 12 to 240 VDC and 24 to 240 VAC, 50/60 Hz • 25 x 65 x 81 mm reinforced PC/ABS- housing, IP 67 • NO and NC output • High EMC immunity • UL, CSA and CE |
• Range: 12 m
• Modulated, visible light, polarized • Make or break switching function (switch selectable) • Make or break Mute function (switch selectable) • LED-indication for target detected • Multi supply voltage: 24 VDC and 24 VAC, 50/60 Hz • 25 x 65 x 81 mm reinforced PC/ABS- housing, IP 67 • NO and NC output • High EMC immunity • CE, UL325 and UL508 approved |
Mute Input spec: https://sclsystem.creaworld.sg/wp-content/uploads/2024/04/PMP12RGM.pdf
