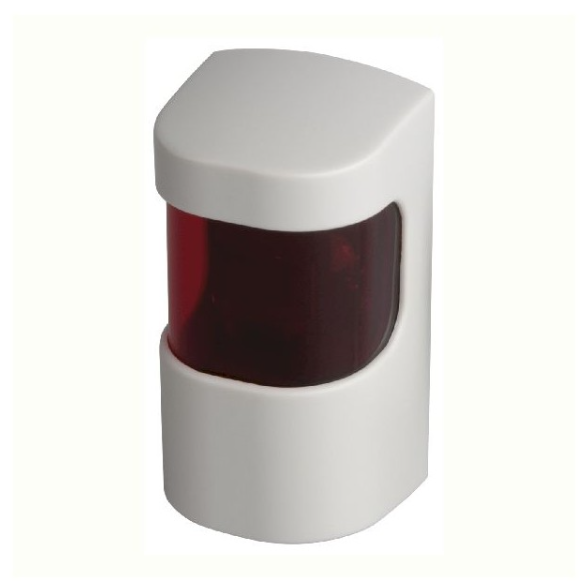

The PD86 is a powerfull polarized retro reflective sensor. The sensor is designed to meet the harsh requirements in industrial door and gate environments.

With a sensing distance of 12 m, the sensor is useful in applications where dust and weather conditions will influence on the sensing distance. The sensor is made of a strong glass reinforced PC housing.

Features

• Range: 12 m @ ER 4 (15 m @ ER100)

• Modulated, visible light, polarized

• Make or break switching function, selectable by DIP-switch

• Active high or active low mute function (switch selectable)

• LED-indication for target detected and power

• Multi supply voltage: 12-24 VDC/VAC, 50/60 Hz

• 86 x 44 x 39 mm reinforced PC/ABS-housing, IP 66

• SPST relay output

• High EMC and ambient light immunity

• CE, UL325 and UL508 approved
