Description

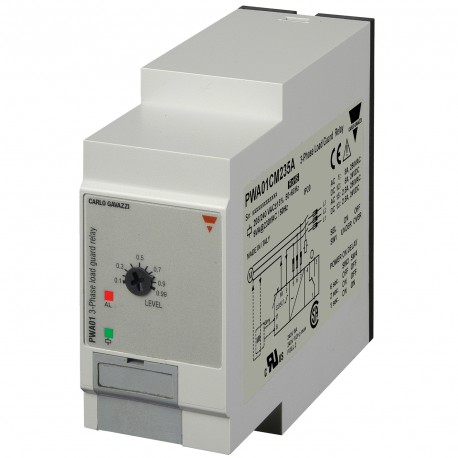

DWA01 and PWA01 are precise over or under cos ϕ monitoring relays.
The relays monitor their own power supply voltage and the current of a balanced 3- phase system.
For current measure direct connection, 5A standard current transformers and MI CT can be used.
The LED’s indicate the state of the alarm and the output relay.
Features
• Cos ϕ monitoring relays
• Measuring if power factor is within set limits
• Measure their own power supply (voltage) and current for balanced systems
• Measuring ranges for current: 5A and MI current transformers range
• Power ON delay 1, 2 or 6 s selectable
• Knob adjustable level on absolute scale
• Output: 8 A SPDT relay Normally Energized
• For mounting on DIN-rail in accordance with DIN/EN 50 022 (DWA01) or plug-in module (PWA01)
• 22.5 mm Euronorm housing (DWA01) or 36 mm plug-in module (PWA01)
• LED indication for power supply and output ON
