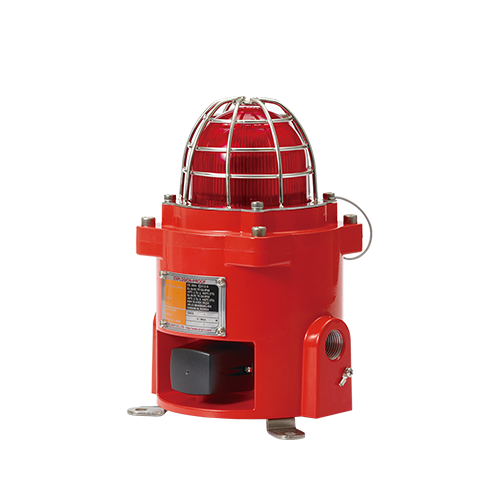

Q-LIGHT QNES EXPLOSION PROOF LED SIGNAL/ WARNING LIGHT

Loading...

Description

  • Explosion proof, multifunctional, and compact LED signal light designed for use in explosive gas environments with Ex d ? C rating
  • Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
  • A variety of sound selections between warning sounds, alarm sounds, melodies and voice messages to fit your sophisticated application needs
  • Features superior durability with aluminum housing
  • Fully enclosed structure with protection rating of IP66
  • Housing standard color: Red, MUNSELL No. 7.5BG 7/2
  • Cable Entry: 1/2? NPT
  • Sound Volume: Max. 110dB at 1m
  • Flashing rate(LF type): 60-80/min.
  • Strobe rate(LR type) : 70~80/min.
  • Simulated revolving rate(LR type) : 120~140RPM
  • Materials : Lens-PC, Inner lens-Tempered glass, Bracket-SUS304, Housing-Al
  • Certificates : ATEX, IECEx
  • Protection rating : IECEx – Ex d IIC T6, IP66
    ATEX – II2G Ex d IIC T6, IP66
