Description

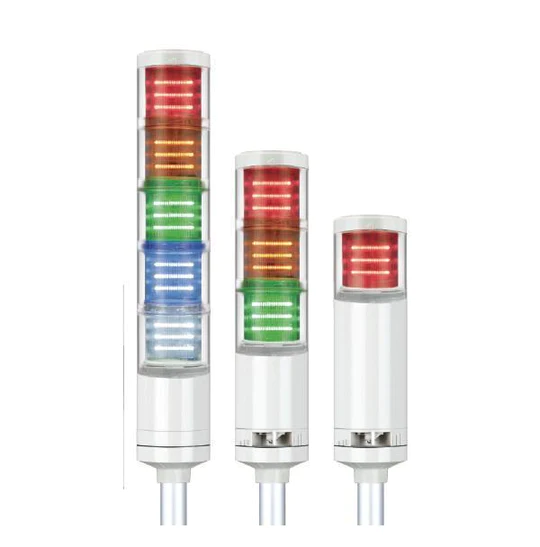

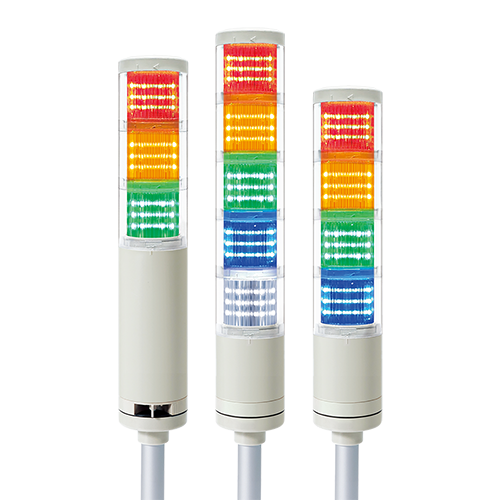

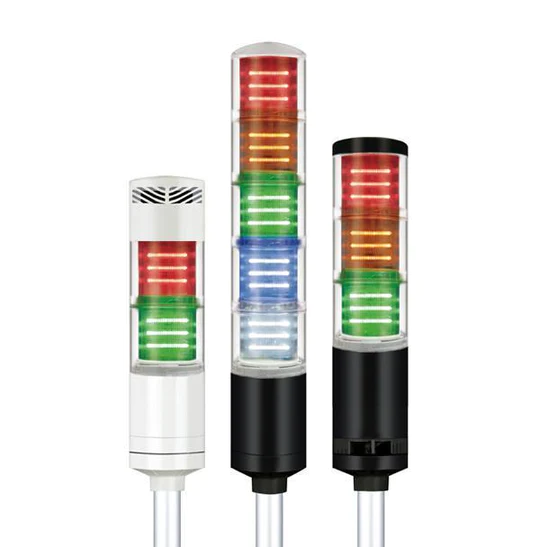

  • Modular LED steady/flashing signal tower lights
  • Added a separate color filter lens inside the outer lens to help provide a clear signal
  • The addition of modules and change in color arrangement can be achieved without the use of tools by using the Lock-type structure
  • QTCA type offers a nifty integrated lens and cover for a simple aesthetically pleasing product
  • When it is turned off the milky color filter provides comfortable viewing at close proximity for the operator
  • A variety of mounting bracket selections for the pole mount type to fit your location and mounting needs
  • Built-in buzzer available : Volume of Max. 90dB at 1m
  • Available in customized 2 sound buzzer type and high volume(105dB) buzzer type
  • Can be used with NPN open collector transistor driven input, which allows direct connection to a PLC
  • Flashing rate : 60-80 flashes/min
  • Materials : Lens-PC, Filter lens : PC, Housing-ABS, Pole-Al
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : Standard type-IP65, Built-in buzzer type-IP54
  • Certificates : CE Compliant, UL Listed
  • Compliant with RoHS directive
