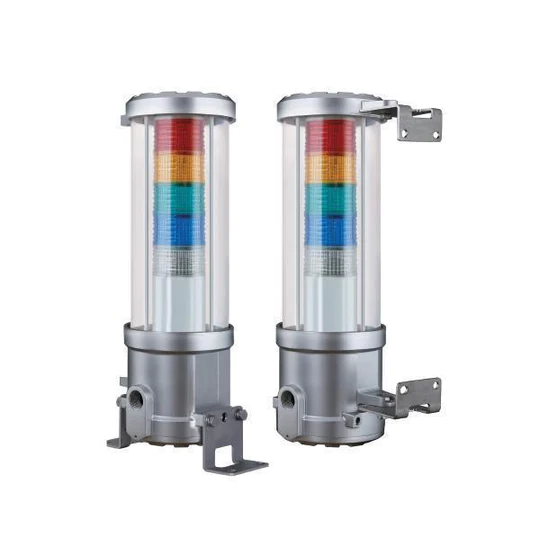

Q-LIGHT QTEXB EXPLOSION PROOF TOWER LIGHTS

Description

Explosion proof LED tower lights with Ex dⅡC rating can be used in explosive gas environments
Excellent distance visibility by using a special reflector to aggregate the light from the LED filament
Ø80 LED tower light mounted inside the flame proof housing
Aluminum housing provides excellent durability
Long-lasting high intensity LED light source
Terminal box located inside the housing for easy power wiring
Direct mount type and wall mount type available depending on application needs
Flashing rate: 60-80 flashes/min
Selectable between steady/flashing mode with proper wire arrangement
Explosion Proof LED tower lights with visual & audible signal that can be used in
hazardous environments
Sound tone & volume : Siren buzzer, Max. 102dB at 1m
Lens color arrangement : R-Red A-Amber G-Green B-Blue W-White
Standard housing color: Silver
Cable entry: 3/4″ NPT
Materials : Lens-Tempered glass, Filter lens-AS, Housing-Al, Reflector-Heat resistant ABS
Certificates : IECEx
Protection rating : Ex dⅡC T6 Gb, IP66
Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C

Brands	Qlight
