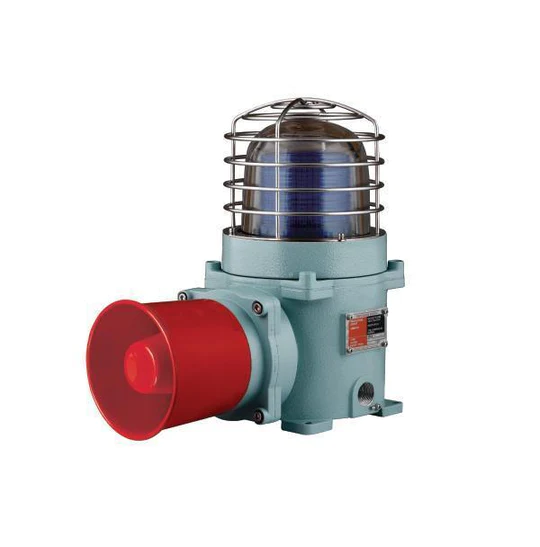

Q-LIGHT SESAS EXPLOSION PROOF XENON LAMP STROBE TYPE WARNING LIGHT AND ELECTRIC HORN COMBINATIONS

Description

Large explosion proof warning light and electric horn combinations
A variety of light sources and sound selections to fit your sophisticated application needs
Aluminum housing provides excellent durability
Fully enclosed structure with protection rating of IP66
Integrated housing and terminal box model
Excellent diffusion effect with special multifaceted reflector
Revolving speed : 120-140RPM
Sound volume : Max. 118dB at 1m(Volume adjustable)
Standard housing color : MUNSELL No. 7.5BG 7/2
Cable entry : 1/2″ NPT
Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector-PC
Certificates : IECEx, ATEX, NEPSI, KIMM, KOSHA, ABS, CCS, KR
Protection rating :
IECEx – Ex dⅡC T6 Gb, IP66
ATEX – Ⅱ2G Ex dⅡC T6, IP66
NEPSI, KIMM, KOSHA – Ex dⅡC T6, IP66
Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C

Brands	Qlight
