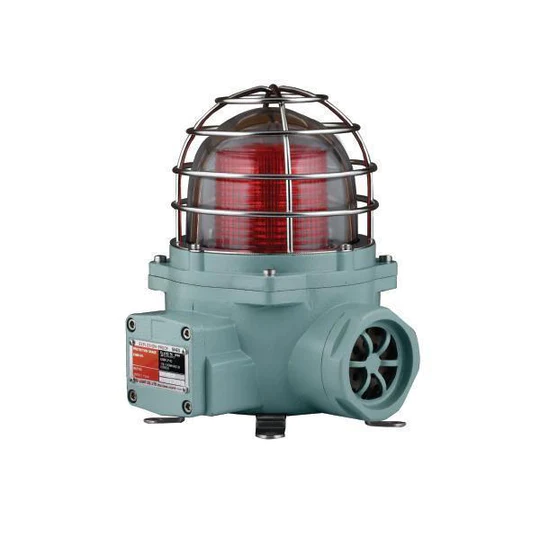

Q-LIGHT SNESL EXPLOSION PROOF LED STEADY/FLASHING TYPE WARNING LIGHT WITH SIREN BUZZER

Description

Light weight and compact explosion proof warning lights with a siren buzzer
Aluminum housing provides excellent durability
Fully enclosed structure with protection rating of IP66
Excellent signal light diffusion effect with multi-faced reflector
Revolving speed : 120-140RPM
Integrated housing and terminal box model
Sound type and sound volume : Siren buzzer- Max. 105dB at 1m/ 7 sounds buzzer, Max. 95dB at 1m
User selected built-in buzzer with 7 sound patterns available upon request
Housing standard color : MUNSELL No. 7.5BG 7/2
Cable entry : 1/2″ NPT
Materials : Lens-Tempered glass, Inner lens-PC, housing-Al, Protection cage-STS316L, Reflector-PC
Certificates : IECEx, ATEX, NEPSI, KIMM, KOSHA, CCS
Protection rating :
IECEx – Ex dⅡC T6 Gb, IP66
ATEX – Ⅱ2G Ex dⅡC T6, IP66
KOSHA – Ex dⅡB+H2 T6
NEPSI, KIMM – Ex dⅡC T6, IP66
Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C

Brands	Qlight
