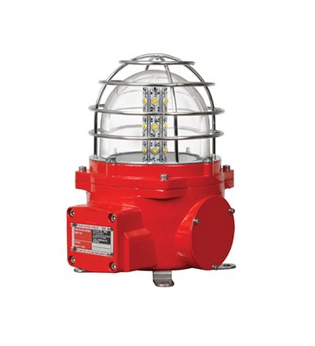

QEAL1 Explosion Proof Low Intensity LED Aviation Obstruction Light
Loading...
Description
- Low Intensity B type Explosion Proof aviation obstruction light
- Features high visibility from a distance with the direct LED light distribution system
- Cost savings enabled by using a long lasting LED light source which eliminates the need for maintinence
- Aluminum housing provides excellent durability
- Terminals located inside the housing for wiring
- Protection rating : Ex d ⅡC T4, IP66
| CAO standard | Low intensity B type | ||
| Light source | High intensity light emitting diodes(LED) | ||
| Light color | Red | ||
| Light function | Steady | ||
| Rated voltage | DC12V, DC24V, AC110V, AC220V | ||
| Power consumption | 30W | ||
| Standard housing color | Red | Cable entry | 1/2″ NPT |
| Materials | Lens-Tempered glass, Housing-AL, Lens ring-STS316L, Protection cage-STS316L, Heat sink-AL | ||
| Protection rating | IP66 | Ambient operating temperature | -40℃ ≤ Tamb ≤ +60℃ |
| Certificates | KC(KOSHA) | Luminous intensity | 50cd ±25% |
