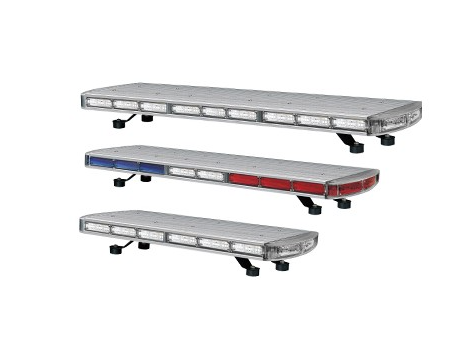

QLV LED Strobe Warning Light Bar

Loading...

Description

  • Compact and aerodynamic design minimizes air resistance in high speed vehicles
  • Transparent polycarbonate outer and inner lens provides clear signal light transmission
  • Strong mechanical strength, heat, and UV light resistance
  • Excellent protection from vibration and impact with use of aluminum boards for both the top and bottom plates
  • Internal heat discharges naturally because each LED module adopts an excellent heat dissipative structure
  • 1,250mm, 1,150mm and 885mm length models are also available
  • Lens color :  Blue-Red,  Red-Red,  Amber-Amber,  Green-Green
  • Available in customized color arrangements
  • Materials
    QLV Light Bar Model : Lens-PC, Cover-Al, Board-Al, Mount bracket-STS
  • Ambient operating temperature : -30°C to +50°C
  • Protection rating : IP56
  • Excellent light transmission with use of 24 High brightness LED Strobe modules
  • Replaceable LED module design
  • Flashing rate : 60-80 flashes/min



Model
number
LED module
number
Voltage Current Certificate Weight Color
QLV-1250 24EA DC12V 13A 16.51kg  Blue-Red
 Red-Red
 Amber-Amber
 Green-Green
QLV-1150 22EA 15.62kg
QLV-885 18EA 12.97kg
