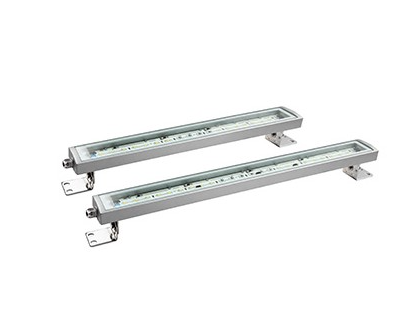

QMFLN Water, Vibration and Oil Resistant LED Work Lights with IP67/ IP69K Protection

Description

Suitable sealing structure provides excellent oil resistance, suitable for environments with high temperature cutting oil
Suitable for high pressure and high temperature water cleaning environments(IP69K)
Tempered glass prevents damage from machine tool chips
Bracket included has tilt adjustment with angle of 120°
Can select from variety of body length of 200/300/400/500/600mm to fit your application needs
Can choose anti-glare lens type depending on work environment
Certificates : CE, UL

Optics Specifications
Model		QMFLN-200	QMFLN-300	QMFLN-400	QMFLN-500	QMFLN-600
Lens color		Translucent	Translucent	Translucent	Translucent	Translucent
Light color(Standard)		Cooldaylight
Color temperature(Standard)		6,000~7,000K
Luminous flux	DC	732lm	1,626lm	2,411lm	2,710lm	3,523lm
Illumination (at 1m)	DC	270Lux	600Lux	890Lux	1,000Lux	1,300Lux
Specifications
Model		QMFLN-200	QMFLN-300	QMFLN-400	QMFLN-500	QMFLN-600
Rated voltage		DC24V
Rage of operation voltage		DC22V~30V
Current		0.235A	0.520A	0.816A	0.816A	1.050A
Power consumption		5.6W	12.5W	20W	20W	25W
Insulation resistance		Min. 100MΩ(500V DC mega ohm meter)
Withstanding voltage		500V AC, 60Hz, 1minute
Operating temperature		-30℃~+60℃
Waterproof		IP67/ IP69K
Materials		Housing : AI, Side cover: AI, Lens: Tempered glass, Bracket: SPC-1
Certificates
Weight(approx.)		0.57kg	0.80kg	1.03kg	1.26kg	1.49kg

Brands	Qlight
