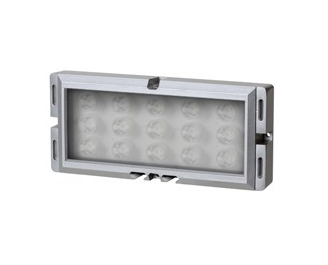

QWHL150/250 LED Indoor Work Light

Description

Direct Mount High Brightness LED Work Light for improving machine efficiency and accuracy

High brightness power LED offers a powerful level of illumination for precision work
Tempered glass improves shock resistance
Glare shield lens is applied for reducing visual fatigue
Die casting aluminum structure is resistant to vibration, impact and heat
Oil resistant cable is suitable for machine tools exposed to cutting oil
Material : Body-AL, Lens-Tempered Glass
Lux : 1,800 Lux at 1m
Protection Class : IP67

Product Specification

Model	Voltage	Current	Weight	LUX	Color
QWHL150	DC24V	Max.0.533A	0.93kg	1,200Lux at 1m	W-White

Wiring

Power cord : CLASSIC 400P (0.75sq X 2C) 400mm
DC product : Black or Bule line is negative(–). However, cords can be connected regardless of polarity because of the built-in bridge circuit

Available Specification

QWHL150	24	W
Model	Voltage	Color
QWHL150	24-DC24V	W-White

_________________________________________________________________________________________

Product Specification

Model	Voltage	Current	Weight	LUX	Color
QWHL250	DC24V	Max.0.800A	1.21kg	1,800 Lux at 1m	W-White

Wiring

Power cord : CLASSIC 400P (0.75sq X 2C) 400mm
DC product : Black or Bule line is negative(–). However, cords can be connected regardless of polarity because of the built-in bridge circuit

Available Specification

QWHL250	24	W
Model	Voltage	Color
QWHL250	24-DC24V	W-White

Brands	Qlight
