Description

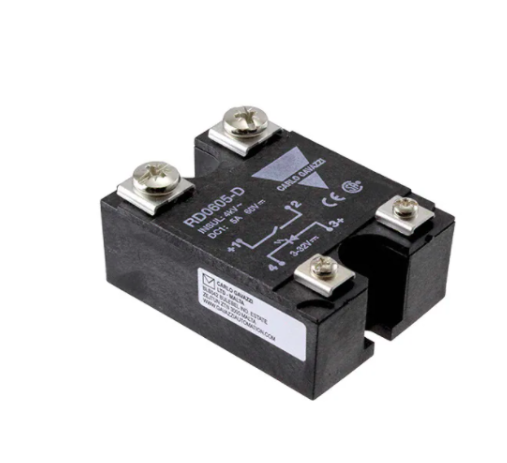

The DC switching relay is used in applications in which there is a need for fast switching of small DC loads with a high input/output isolation of more than 4000 VACrms. The DC switching transistor relay always switches ON and OFF in accordance with the applied control voltage.
Features
• DC Solid State Relay
• Rated operational current: 1 and 5 ADC
• Operational voltage range: Up to 350 VDC
• Input range: 3 to 32 VDC
• Isolation: OPTO (input-output) 4000 VACrms
