Description

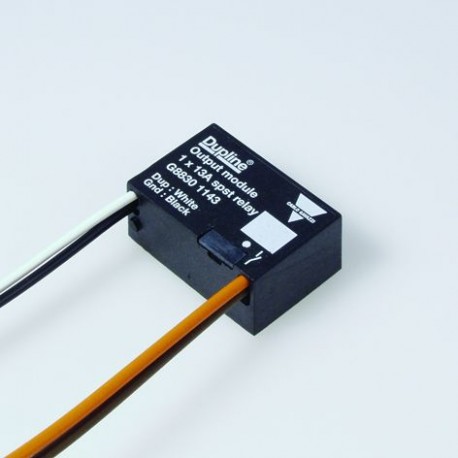

The Dupline® decentral receiver has a build-in SPST relay for control of a load of up to 13 A/250 VAC.
The module is especially designed for the use in building automation applications where it allows a flexible installation concept featuring a separate power and signal (control) bus.
The compact size of the module makes it possible to fit it in a junction box or directly behind a power outlet.
Features
• Small sized single relay output
• Load: 13 A/250 VAC
• Withstands 130A inrush current
• Powered via Dupline®
• Address coding by GAP 1605
