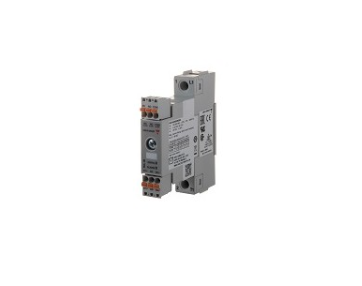

The RG..M solid state relays incorporate monitoring functions for fast failure detection on top of the switching capability in a slim 17.8 mm platform (up to 30 AAC). Timely detection for mains loss, load loss, SSR open and short circuit, SSR internal fault and supply out range are all possible with the RG..M series. This range of solid state relays is equipped with an Alarm LED for visual indication of fault presence as well as an alarm transistor output for remote signalling.

The RG..M solid state relays are available either with integrated heatsink, RGC..M and without heatsink, RGS..M. Ratings go up to 660 VAC, 65 AAC for RGC..M and 90 AAC for RGS…M. The RG..M has to be supplied with a 24 VDC voltage and is controlled with a DC voltage between 4 and 32 VDC.

Specifications are noted at 25°C unless otherwise stated.

Benefits

• Cost savings by timely detection of failures. Integrated monitoring for load or solid state relay malfunction provides immediate feedback to the PLC for a timely reaction to prevent non-conforming material.

• Reduced efforts in troubleshooting. An Alarm LED on the front façade of the solid state relay is available to indicate the problematic zone.

• Increased machine uptime. Integrated overvoltage protection prevents the solid state relay from breaking down due to uncontrolled transients.

• Long lifetime. Wire bonding technology reduces thermal and mechanical stresses of the output chips allowing a larger number of operational cycles compared to other assembly technologies.

• Fast installation and wiring. The RG..M is equipped with pluggable spring terminals for fast wiring of control connections.

• Panel space savings. Adopts the RG slimline compact platform with a minimum product width of 17.8 mm for ratings up to 30 AAC @ 40°C.

• Accommodates UL508A requirements for Industrial Control Panels. RGC..M is certified as a listed product and additionally all RG..M models carry a 100kArms Short Circuit Current Rating.

Features

• 1-phase zero cross solid state relay with integrated monitoring for solid state relay or load malfunction

• Normally open or normally closed alarm transistor output for remote signaling of an alarm condition

• Ratings up to 90 AAC, 660 VAC with a control voltage range of 4-32 VDC
