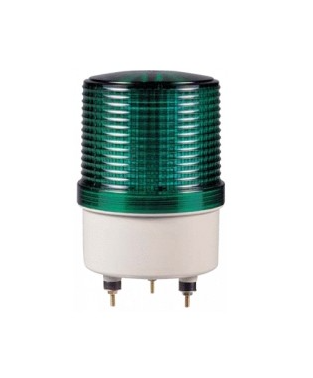

Improving Visibility by Employing Special Scattering Lens

• LED Steady/Flashing type of high brightness
• Having built-in steady/flashing selection switch
• Semi-permanent in the lifespan of light source and suitable for machines having strong vibration and impact
• Built-in Buzzer is applicable
• Volume(Buzzer Built-in Type) : 90dB/m
• Material : Lens-AS, Body-ABS, Reflector-Heat Resistant ABS
• Certificate : CE
• Protection Class : IP44

Product Specification

Model	Rated Voltage	Current	Weight	Flashes	Color
S100L	DC12V	0.111A	0.28Kg	60~80/min	R-Red  A-Amber  G-Green  B-Blue
	DC24V	0.115A	0.28Kg
	AC110V	0.044A	0.51Kg
	AC220V	0.022A	0.51Kg

Wiring

• Power Line out from the product : UL1015-NO.18(0.75sq)x2C 400mm
• Wiring Power Line

AC Product : Wire regardless of cable color
DC Product : Black line is Negative(-). But, wire without polarity because bridge circut is built-in.

Available Specification

S100L	(BZ)	220	R
Model	Buzzer	Voltage	Color
S100L	None(Standard)               -Without Buzzer               BZ(Order)               -With Buzzer	12-DC12V                 24-DC24V                 110-AC110V                 220-AC220V	R-Red                   A-Amber                   G-Green                   B-Blue
