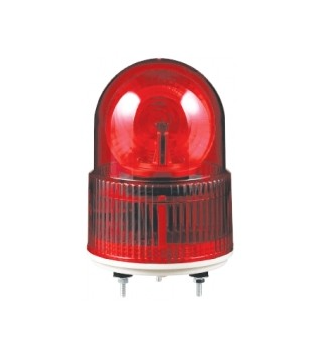

S100RLR LED Revolving Warning Light

Loading...

Description

Light

LED Revolving Light Adapting Power LED of High Brightness and Special Reflector

External Diameter :
Ø101mm
Height :
149mm
Voltage :
DC12V,24V
AC110V,220V
  • Semi-permanent lifespan by adapting Power LED of high brightness
  • Low power consumption by using POWER LED but securing same or higher brightness than bulb applied product
  • Excellent visibility by adapting special multi-faceted reflector which has high efficiency of light diffusion
  • Employing a special power transmission system minimizing noise and wear
  • AC Voltage Product has built-in switch for selection of 110V or 220V
  • Built-in Buzzer is applicable
  • Volume(Buzzer Built-in Type) : 90dB/m (2 Buzzer Sound Type is Custom Made)
  • Revolving Speed : 120~140RPM
  • Material : Lens-AS, Body-ABS, Reflector-Heat Resistant ABS
  • Protection Class : IP44

Product Specification

Model Rated Voltage Current Weight RPM Color
             S100RLR       DC12V       0.183A       0.32Kg   120~140RPM       R-Red
 A-Amber
 G-Green
 B-Blue
      DC24V       0.127A       0.32Kg
      AC110V       0.035A       0.55Kg
      AC220V       0.017A       0.55Kg
Wiring
  • Power Line out from the product : UL1015-NO.18(0.75sq)x2C 400mm
  • DC Product : Black line is Negative(-). But wire without polarity because bridge circuit is built-in



Available Specification

S100RLR (BZ) 24 R
Model Buzzer Voltage Color
               S100RLR               None(Standard)
              -Without Buzzer
              BZ(Order)
              -With Buzzer
                 12-DC12V
                 24-DC24V
                 110-AC110V
                 220-AC220V
                  R-Red
                  A-Amber
                  G-Green
                  B-Blue
