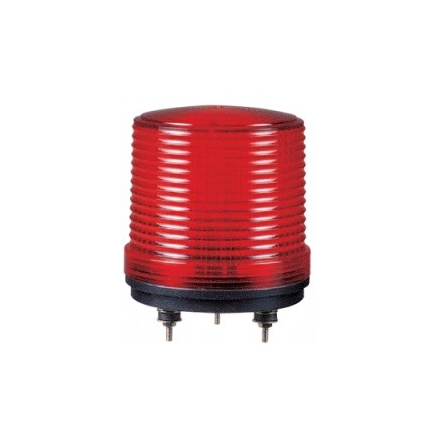

Strobe Light of High Brightness, Excellent Visibility from a Distance

External Diameter :

Ø101mm

Height :

113mm

Voltage :

DC12V,24V
AC110V,220V

• Xenon Lamp Strobe Light Type
• Lamp of connector type whose replacement is easy
• Xenon lamp with powerful strobe signal, making easy signal catching from a distance
• Material : Lens-AS, Body-ABS
• Protection Class : IP54

Product Specification

Model	Rated Voltage	Current	Weight	Bulb	Flashes	Color
S100S	DC12V	0.722A	0.29Kg	48	60~80/min	R-Red  A-Amber  G-Green  B-Blue
	DC24V	0.388A	0.29Kg
	AC110V	0.133A	0.27Kg
	AC220V	0.106A	0.27Kg

Wiring

• Power Line out from the product : UL1015-NO.18(0.75sq)x2C 400mm
• Wiring Power Line

AC Product : Wire regardless of cable color
DC Product : Black line is Negative(-), But, wire without polarity because bridge circuit is built-in

Available Specification

S100S	24	R
Model	Voltage	Color
S100S	12-DC12V 24-DC24V 110-AC110V 220-AC220V	R-Red  A-Amber  G-Green  B-Blue
