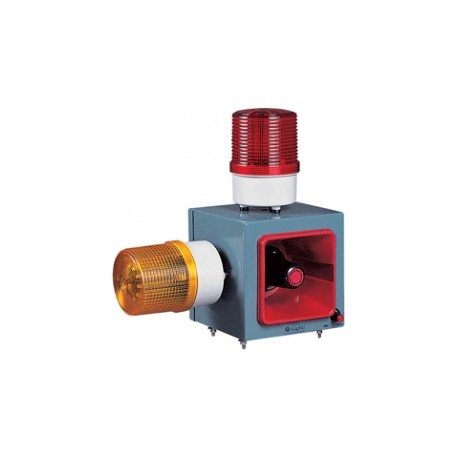

S100ULS-BH INTEGRATED BOX TYPE LED SIGNAL Light with Siren

Add To Enquiry
Enquiry
Back To Listing
Loading...

Description

Multi-Function Combined Product with Signal Light and Strong Sounder

Suitable For:

  • Automobile Production Lines
  • Industrial Machinery
  • Cranes
  • Steel Industry
  • Plant Industry

Specifications:

  • External Diameter: Ø101mm
  • Height: 340mm
  • Voltage Options:
    • DC 12V, 24V
    • AC 110V, 220V
  • Light Source Options:
    • LED Flashing Type
    • LED Revolving Flashing Type (Shift-Resister)
  • Durability: Semi-permanent lifespan with high brightness LED, suitable for environments with strong vibration and impact.
  • Control Features:
    • Adjustable flashing interval via built-in volume controller.
    • Selectable sound tone via wiring method to the built-in terminal box.
    • Option to switch between LED flashing and LED revolving flashing via wiring method.
    • Adjustable sound volume via volume controller on the front side of the box.
  • Material:
    • Lens: AS
    • Body: Steel
  • Sound Volume: MAX 108 dB/m

Product Specification:

Model Rated Voltage Current Weight RPM (Flashes) Color
S100ULS-BH DC 12V 1.050A 4.50Kg 6080/min (180250/min) R-Red, A-Amber
DC 24V 0.095A 4.50Kg
AC 110V 0.020A 5.00Kg
AC 220V 0.010A 5.00Kg
  • Other colors except red and amber are custom-made.

Sound Tone Combination of Standard Product:

Main Built-in Sounds Sound Tone Volume
MELODY 1 Home Sweet Home MAX 85dB
MELODY 2 Piano Sonata MAX 85dB
MELODY 3 The Magic Flute MAX 85dB
MELODY 4 Door Chime MAX 83dB
MELODY 5 PI.PI.PI.PI. Short Interval MAX 85dB

Wiring Instructions:

  • Power Line Wiring:
    • AC Voltage Product: Wire without polarity.
    • DC Voltage Product: The terminal connected by the black line is Negative (-).
  • Signal Line Wiring:
    • Wire the sound signal line and operating signal line to the common terminal.

Available Specifications:

Model Voltage Color
S100ULS-BH 12 – DC 12V R – Red, A – Amber
24 – DC 24V
110 – AC 110V
220 – AC 220V
