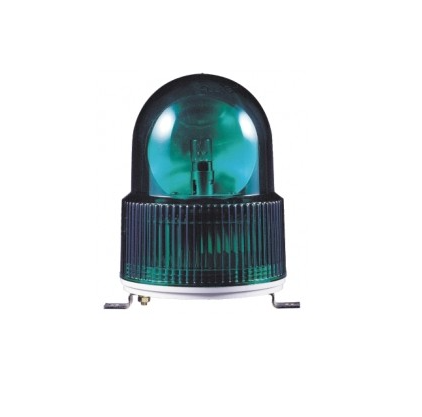

Economical Product Suitable for the Equipments for Fire Safety and Road Safety

External Diameter :

Ø119mm

Height :

170mm

Voltage :

DC12V,24V
AC110V,220V

• Employing a special power transmission system minimizing noise and wear with long durability
• Economical product at competitive price
• Revolving Speed : 120~140RPM
• AC voltage only
• Easy installation by moubting bracket equipped with
• Built-in Buzzer is applicable
• Volume(Buzzer built-in Type) : Max 90dB/m (2 Buzzer Sound Type is custom made)
• Material : Lens-AS, Body-ABS, Reflector-Heat Resistant ABS
• Protection Class : IP44

Product Specification

Model	Rated Voltage	Current	Bulb			Weight	Color
S125E-FT	DC12V	0.966A	12V10W	T16x35 15S	9	0.42Kg	R-Red  A-Amber  G-Green  B-Blue
	DC24V	0.566A	24V10W	T16x35 15S	10	0.42Kg
	AC110V	0.087A	110V10W	T16x35 15D	15	0.43Kg
	AC220V	0.045A	220V10W	T16x35 15D	16	0.43Kg

Wiring

• Power Line out from the product : UL1015-NO.18(0.75sq)x2C 400mm
• In case of DC voltage product, Black line is Negative(-).

Available Specification

S125E-FT	(BZ)	220	R
Model	Buzzer	Voltage	Color
S125E-FT	None(Standard)               -Without Buzzer               BZ(Order)               – With Buzzer	12-DC12V                 24-DC24V                 110-AC110V                 220-AC220V	R-Red                   A-Amber                   G-Green                   B-Blue
