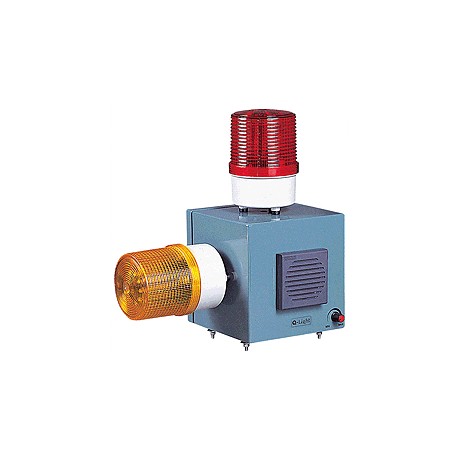

S125ULS-B INTEGRATED BOX TYPE LED SIGNAL Light with PANEL SOUNDER

Add To Enquiry
Enquiry
Back To Listing
Loading...

Description

Multi-Function Combined Product with Signal Light and Panel Sounder

Overview:

Our multi-function signal light and panel sounder unit is designed for robust applications, including automobile production lines, industrial machinery, cranes, steel, and plant industries. It combines a high-brightness LED signal light with a panel sounder, ensuring clear visibility and audibility in various industrial settings.

Key Features:

  • External Diameter: Ø119mm
  • Height: 430mm
  • Voltage Options: AC 110V, 220V
  • LED Options: Flashing or revolving type (Shift-Resistor)
  • Durability: Semi-permanent lifespan with high-brightness LEDs suitable for environments with strong vibration and impact.
  • Adjustable Flashing Interval: Built-in volume controller for customizable flashing intervals.
  • Sound Tone Selection: Sound tone can be selected through wiring to the built-in terminal box.
  • Sound Volume Control: Adjustable via the volume controller on the front of the box.
  • Material: Lens – AS, Body – Steel
  • Maximum Volume: 85 dB/m

Product Specifications:

Model Rated Voltage Current Weight RPM (Flashes) Color
S125ULS-B DC 12V 1.050A 4.50Kg 6080/min (180250/min) R – Red, A – Amber
DC 24V 0.095A 4.50Kg
AC 110V 0.020A 5.10Kg
AC 220V 0.010A 5.10Kg
*Other colors except red and amber are custom made.

Built-in Sound Tones:

Main Built-in Sounds Sound Tone Volume
MELODY 1 Home Sweet Home MAX 85dB
MELODY 2 Piano Sonata MAX 85dB
MELODY 3 The Magic Flute MAX 85dB
MELODY 4 Door Chime MAX 83dB
MELODY 5 PI.PI.PI.PI. Short Interval MAX 85dB

Wiring:

  • Power Line:
    • AC Voltage Product: Wire without polarity.
    • DC Voltage Product: The terminal connected by the black line is Negative (-).
  • Signal Line:
    • Connect the sound signal line and operating signal line to the common terminal.

Available Specifications:

Model Voltage Color
S125ULS-B 12 – DC 12V R – Red
24 – DC 24V A – Amber
110 – AC 110V
220 – AC 220V
