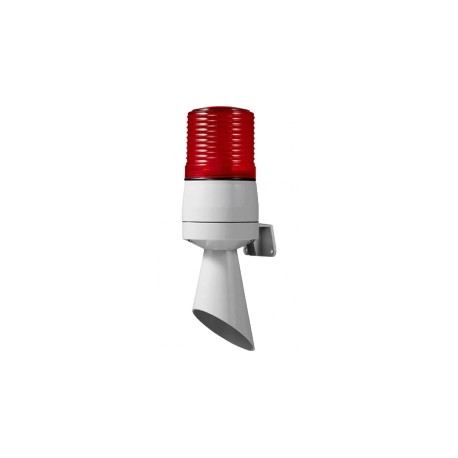

S60ADB Bulb Steady/Flashing Warning Light with a Bulit-in Buzzer

Add To Enquiry
Enquiry
Back To Listing
Loading...

Description

Compact Product with Integrated Light and Buzzer for Signal Transmission

Overview:

Our compact signal product combines light and a powerful buzzer to deliver both visual and audible signals. It is designed for applications in limited spaces and is ideal for various industrial settings.

Key Features:

  • External Diameter: Ø70mm
  • Height: 233mm
  • Voltage Options: DC 12V, 24V; AC 110V, 220V
  • Operation: Steady or flashing bulb type with a built-in strong sound buzzer
  • Signal Transmission: Capable of transmitting both visual and audible signals simultaneously
  • Compact Design: Attractive appearance, easy installation in limited spaces
  • High Visibility: Excellent light diffusion with a high-quality lens
  • Durability: Long-lasting performance with a special filament bulb
  • Customizability: Select steady or flashing operation via an internal switch
  • Lens Colors: Red (R), Amber (A), Green (G), Blue (B)
  • Material: Lens – AS, Body – ABS
  • Protection Class: IP54
  • Maximum Volume: 100 dB/m (Custom 2 Buzzer Sound type available)

Product Specifications:

Model Rated Voltage Current Bulb Weight Color
S60ADB DC 12V 0.009A 12V 10W 0.23Kg R – Red, A – Amber, G – Green, B – Blue
DC 24V 0.450A 24V 10W 0.23Kg
AC 110V 0.115A 110V 10W 0.22Kg
AC 220V 0.057A 220V 10W 0.22Kg

Sound Tone Combination of Standard Product:

Item Sound Tone Voltage Volume
1 Buzzer Sound Continuous “Turu~” AC, DC MAX 100dB
Intermittent sound also available

Wiring:

  • Power Line:
    • Output: UL1007-NO.18(0.75sq) x 2c 400mm
    • DC Product: Black line is Negative (-)
  • Signal Line:
    • Output: UL1007-NO.22(0.3sq) 400mm



Available Specifications:

Model Voltage Color
S60ADB 12-DC12V R – Red
24-DC24V A – Amber
110-AC110V G – Green
220-AC220V B – Blue
