Description

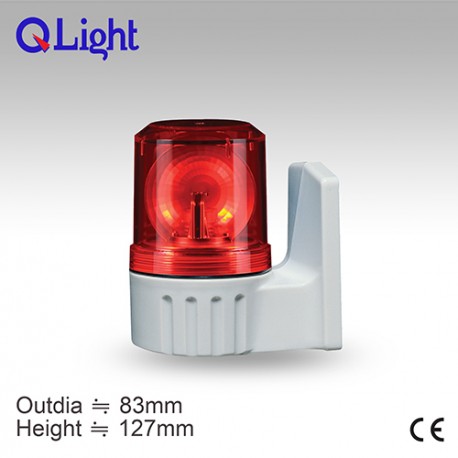

LED Revolving Warning Light Specifications:
Key Features:
- Utilizes high-brightness Power LEDs.
- Special multi-faceted reflector for superior light diffusion.
- Low power consumption compared to traditional bulbs.
- Built-in terminal plate for easy wiring and installation.
- Wall-mountable design using durable materials (Lens-AS, Body-ABS, Reflector-Heat Resistant ABS).
- Optional built-in buzzer for audible alerts (Volume: 90dB/m).
- Designed with a noise and wear-reducing power transmission system.
- Revolving Speed: 120~140 RPM.
- Protection Class: IP44 (resistant to solid objects > 1mm and water spray).
Product Specifications:
| Model | Voltage | Current | Weight | Revolving Speed | Color Options |
|---|---|---|---|---|---|
| S80AULR | DC12V | 0.183A | 0.32Kg | 120~140 RPM | R – Red |
| DC24V | 0.127A | 0.32Kg | A – Amber | ||
| AC110V | 0.035A | 0.50Kg | G – Green | ||
| AC220V | 0.017A | 0.50Kg | B – Blue |
Wiring:
- AC Product: Wire to built-in terminal plate (color of wires not critical).
- DC Product: Connect black wire to negative (-) terminal on terminal plate.
Order Specification
| S80AULR | (BZ) | 220 | R |
|---|---|---|---|
| Model | Buzzer | Voltage | Color |
| S80AULR | None(Standard) -Without Buzzer BZ(Order) -With Buzzer |
12-DC12V 24-DC24V 110-AC110V 220-AC220V |
 R-Red A-Amber G-Green B-Blue |
