Description

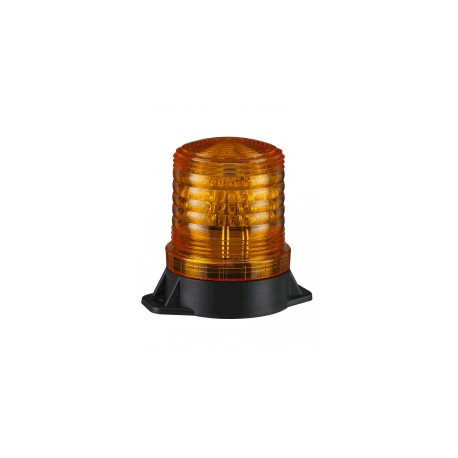

LED Warning Light Specifications:
Key Features:
- Excellent long-distance visibility with LED direct light distribution system.
- External Diameter: Ø83mm
- Height: 111mm
- Voltage: DC12V, DC24V
- High-brightness LED steady/flashing type.
- Semi-permanent LED lifespan with high durability against impact and vibration.
- Urethane molding for high performance in harsh environments (agricultural machines, heavy equipment) exposed to vibration, impact, dust, and water.
- Flashes: 60~80 per minute.
- Material: Lens-PC, Body-ABS
- Protection Class: IP55
Specifications:
| Model | Rated Voltage | Current | Weight | Flashes | Color Options |
|---|---|---|---|---|---|
| S80EHL | DC12V~DC24V | 0.05A | 0.5Kg | 60~80/min. | R – Red |
| A – Amber | |||||
| G – Green | |||||
| B – Blue |
Wiring:
- Power cable: KCS (0.85sq×2c), 400mm
- Available with DC only. Black line is negative (-).
- (+) Terminal: CA104 Connector
- (-) Terminal: CB104 Connector
Available Specifications:
| Model | Rated Voltage | Color |
|---|---|---|
| S80EHL | 12 (DC12V) | R – Red |
| 24 (DC24V) | A – Amber | |
| G – Green | ||
| B – Blue |
