Description

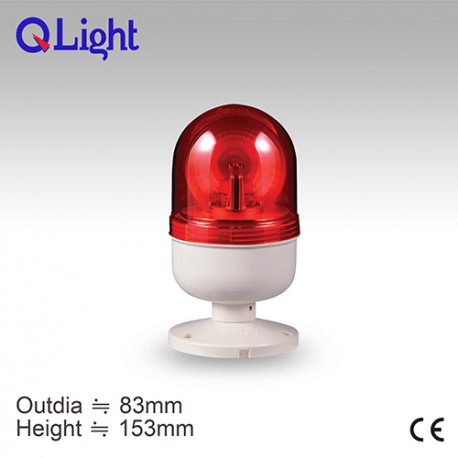

LED Revolving Light Specifications:
Key Features:
- External Diameter: Ø83mm
- Height: 153mm
- Voltage Options: DC12V, DC24V, AC110V, AC220V
- Semi-permanent lifespan with high-brightness Power LED.
- Low power consumption with equivalent or higher brightness compared to traditional bulbs.
- Excellent visibility due to a special multi-faceted reflector for efficient light diffusion.
- Special power transmission system minimizes noise and wear.
- Easy installation facilitated by a circular mounting bracket.
- Revolving Speed: 120~140 RPM.
- Material: Lens-AS, Body-ABS, Reflector-Heat Resistant ABS.
- Protection Class: IP44 (protection against solid objects > 1mm and water spray).
Specifications:
| Model | Voltage | Current | Weight | Flashes | Color Options |
|---|---|---|---|---|---|
| S80RLRK | DC12V | 0.183A | 0.36Kg | 120~140 RPM | R – Red |
| DC24V | 0.127A | 0.36Kg | A – Amber | ||
| AC110V | 0.035A | 0.54Kg | G – Green | ||
| AC220V | 0.017A | 0.54Kg | B – Blue |
Wiring:
- DC Product:
- Power Line: UL1015-NO.18(0.75sq)x2C, 400mm
- Black line is Negative (-). No polarity required due to built-in bridge circuit.
- AC Product:
- Dual Voltage (Custom Made):
- Power Line for AC110V: UL1015-NO.18(0.75sq)x3C, 400mm, Black-White line
- Power Line for AC220V: UL1015-NO.18(0.75sq)x3C, 400mm, Black-Red line
- Dual Voltage (Custom Made):
Available Specifications:
| Model | Voltage Options | Color Options |
|---|---|---|
| S80RLRK | 12 (DC12V), 24 (DC24V), 110 (AC110V), 220 (AC220V) | R – Red, A – Amber, G – Green, B – Blue |
