Description

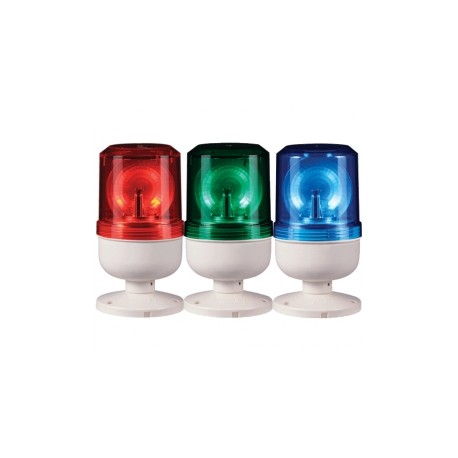

LED Revolving Warning Light Specifications:

Key Features:

  • External Diameter: Ø83mm
  • Easy installation with circular mounting bracket.
  • Special power transmission system minimizes noise and wear.
  • Semi-permanent lifespan using high-brightness Power LED.
  • Excellent visibility with a special multi-faceted reflector for efficient light diffusion.
  • Revolving Speed: 120~140 RPM.
  • Material: Lens-AS, Body-ABS, Reflector-Heat Resistant ABS.
  • Protection Class: IP44 (protection against solid objects > 1mm and water spray).

Specifications:

Model Rated Voltage Current Weight RPM Color Options
S80ULRK DC12V 0.183A 0.36Kg 120~140/min. R – Red
DC24V 0.127A 0.36Kg A – Amber
AC110V 0.035A 0.54Kg G – Green
AC220V 0.017A 0.54Kg B – Blue

Wiring:

  • DC Product:
    • Power Line: UL1015-NO.18(0.75sq)x2C, 400mm
    • Black line is Negative (-).
  • AC Product:
    • Dual Voltage (Custom Made):
      • Power Line for AC110V: UL1015-NO.18(0.75sq)x3C, 400mm, black-white line
      • Power Line for AC220V: UL1015-NO.18(0.75sq)x3C, 400mm, black-red line

Available Specifications:

Model Voltage Options Color Options
S80ULRK 12 (DC12V), 24 (DC24V), 110 (AC110V), 220 (AC220V) R – Red, A – Amber, G – Green, B – Blue
