Description

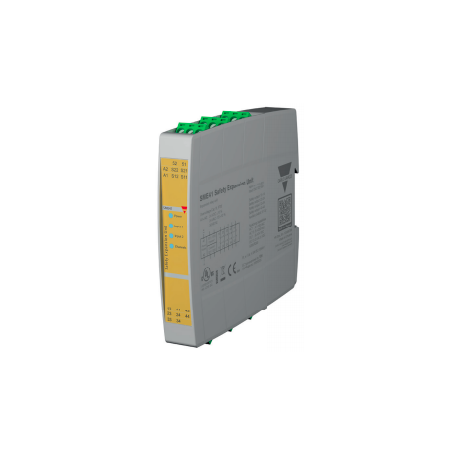

The SME41 safety expansion unit is designed in Category 4, Performance Level e in accordance with the Machine Directive EN ISO 13849-1 to operate as relay expansion unit controlled by a master safety module, with 4 additional safety relay outputs.
The SME41 can operate as relay expansion unit with master modules with safety relay or OSSD outputs.
Features
• Expansion relay unit. The SME41 module can be used in combination with a master safety module to extend the number of safety relay outputs
• Safety outputs. Electromechanical forcibly guided safety relays with 4NO+1NC aux outputs
• Multiple safety input types. The input signal can be connected to master safety module with relay outputs or OSSD outputs
• Machinery Directive compliance. Cat. 4, PL e in accordance with EN ISO 13849-1
• Flexible wiring. The module is equipped with detachable screw terminals for easy wiring and product maintenance; the terminal blocks are coded so to avoid wiring mistakes
• Diagnostic. LED indications for power supply, state of the safety inputs and state of the safety outputs
• Compact. 1-DIN, W x H x D: 17,5 x 110,8 x 121,1mm
• Approval by TÜV. CE, cULus
