Description

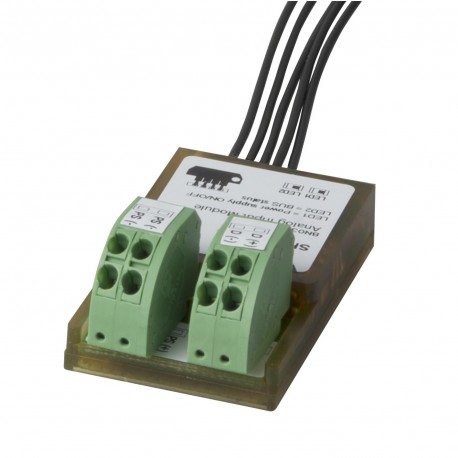

SHPINA224 is a DC-powered input module with 2 x 0-20mA/4-20mA inputs. The compact size of the module makes it possible to fit it into a wall-box or small junction box, thereby enabling a decentralized installation concept where the Dupline® bus is multidropped from sensor to sensor.
This simplifies the wiring to the controller compared to traditional star wiring connections, reduces the number of DDC’s and sub-panels required and provides a higher flexibility for last minute changes and enhancements.
The selection of input type (0-20 mA or 4-20 mA) to be used is done with the SBWEB/SHWEB configuration tools.
Features
• 2 x 0-20mA/4-20 mA inputs
• 24 VDC
• Input type selectable from SBWEB/SHWEB configuration tools
• Small dimension housing for decentralized installation inside wall-box
