Description

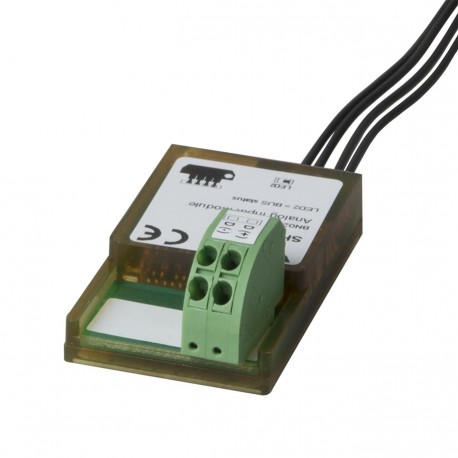

SHPINT1P1 is an input module with 2 analog inputs. The compact size of the module makes it possible to fit it into a wall-box or environmental sensor housing, thereby enabling a decentralized installation concept where the Dupline® bus is multi-dropped from sensor to sensor.
This simplifies the wiring to the controller compared to traditional star wiring connections, reduces the number of DDC’s and sub-panels required and provides a higher flexibility for last-minute changes and en-hancements.
The module has 1 x thermistor 10K3 input and 1 x variable resistor 1-11 KΩ input. It is fully programmable via the SH tool.
Features
• 1 x Thermistor 10K3 input
• 1 x Variable resistor 1-11 KΩ input
• Bus-powered
• Small dimension housing for decentralized installation inside wall-box or environmental sensor housings
