Y series of IO-Link masters fully satisfy the most demanding industrial communication needs.

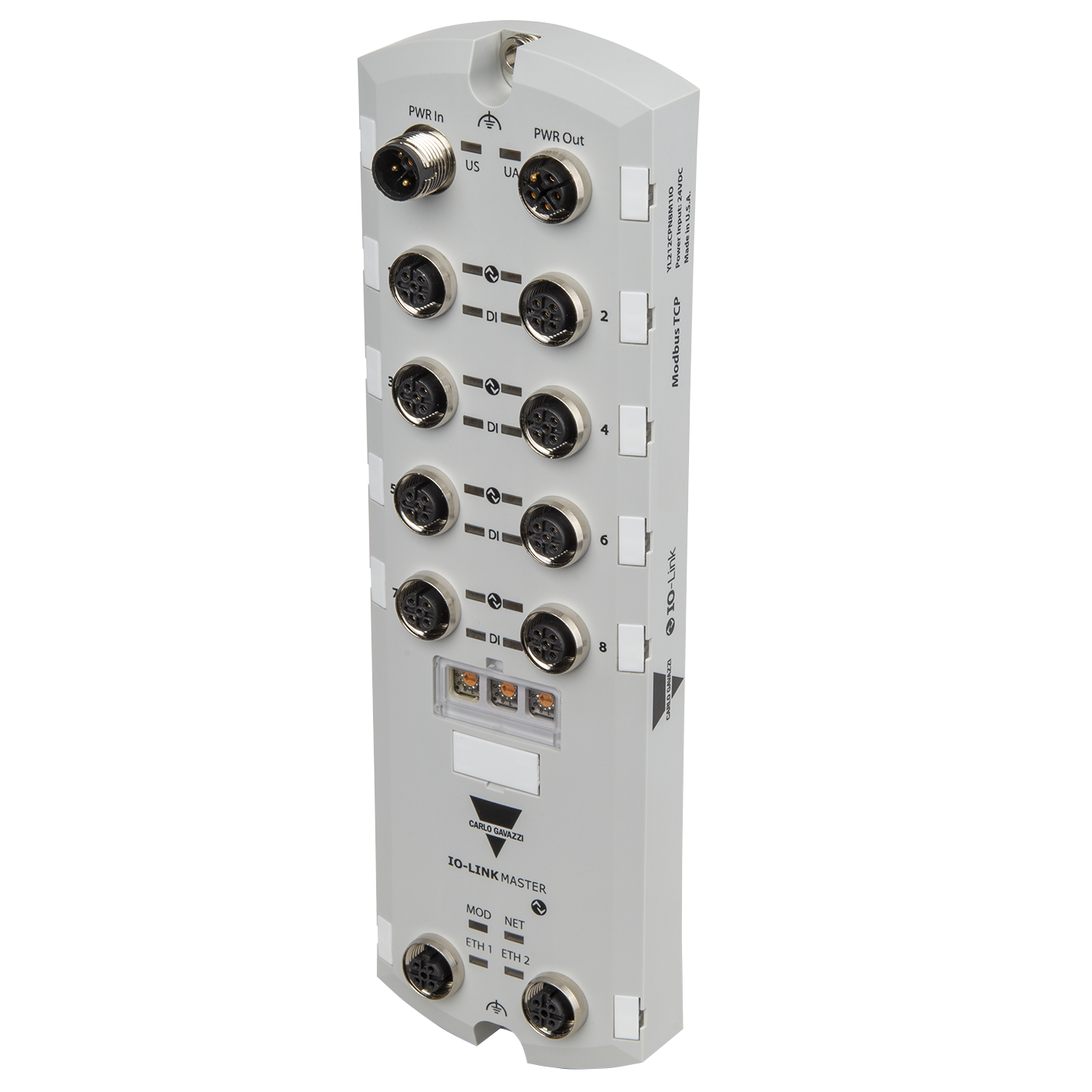

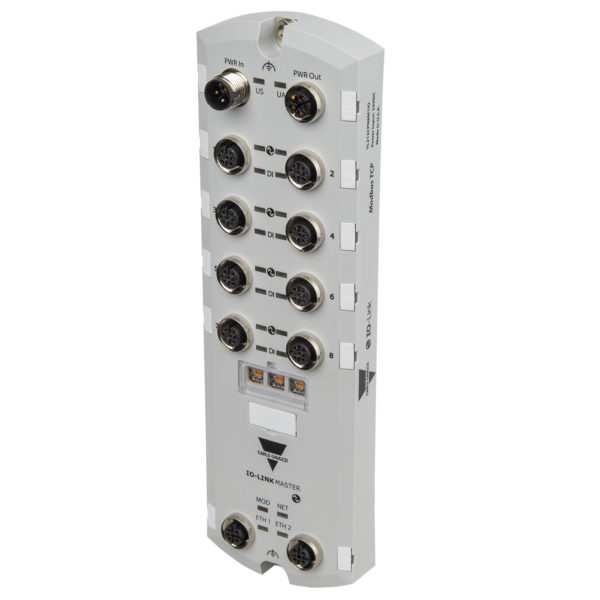

YL212CPN8M1IO is machine mount fieldbus module with eight M12 IO-Link ports, compatible with IO-Link V1.0 and V1.1. It is a gateway solution with support for PROFINET IO fieldbus system.

Thanks to a powerful web interface and integrated IODD interpreter it is possible to configure and diagnose the IO-Link master even from a tablet or smartphone and easily read, parameterize or configure the IO-Link devices connected.

Thanks to IO-Link V 1.1 it is possible to replace a connected device by downloading all parameters into a replacement device automatically from the Master.

With Y series IO-Link masters it is possible to simultaneously provide data access via different communication protocols like PROFINET IO, Modbus/TCP and OPC UA to multiple controllers.

Benefits

• Eight M12 IO-Link ports to PROFINET IO which allows up to eight sensor or actuator connections on a single master

• Additional digital input on every port

• M12 L-Coded power connectors

• Robust IP67 slim-line housing design for machine mounting in harsh environments

• PROFINET IO and Modbus/TCP access to IO-Link process, event and service data

• OPC UA support

• Integrated web server and IODD interpreter

• Dual Ethernet ports via M12, D-coded

• Multi-colour LEDs for device, network, and port status diagnostics

• Wide operating temperature: -25° to +60°C (-13° to 140°F)

• IO-Link V1.0 and V1.1 compatibility

• IO-Link COM1, COM2 and COM3 (230K baud rate)

Features

• Embedded web server and IODD interpreter to configure and access diagnostic information of the attached IOLink devices and of the fieldbus module itself (e.g. setting the IP address and subnet mask) without the need of a specific software

• Possibility to store the configuration of all devices connected in the IO-Link master memory to allow the system to work even without a higher-level PLC and to enable error-proof sensor replacement with automatic parameterization

• IIoT ready, thanks to the integrated OPC UA interface that allows reliable, continuous and transparent data transfer between the field level (sensor/actuator) and higher-level cloud systems in full compliance with the Industry 4.0 requirements

• Daisy-chain power supply with standardized L-coded M12 connection technology allows a higher current rating of up to 16 A

• Industrial Ethernet components and a fully incapsulated housing for harsh environment applications

• Multi-colour LEDs with status and diagnostics information for each channel
