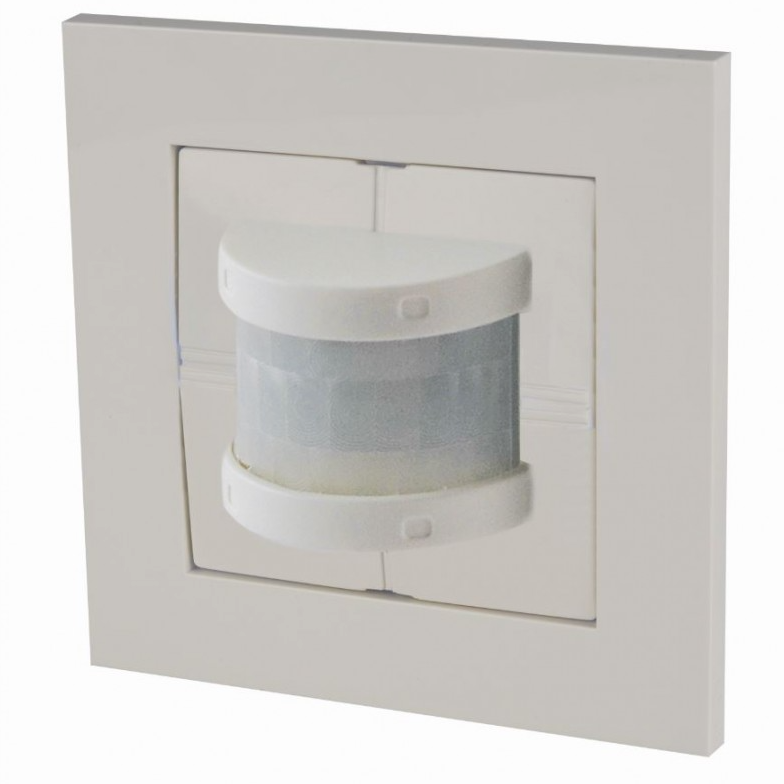

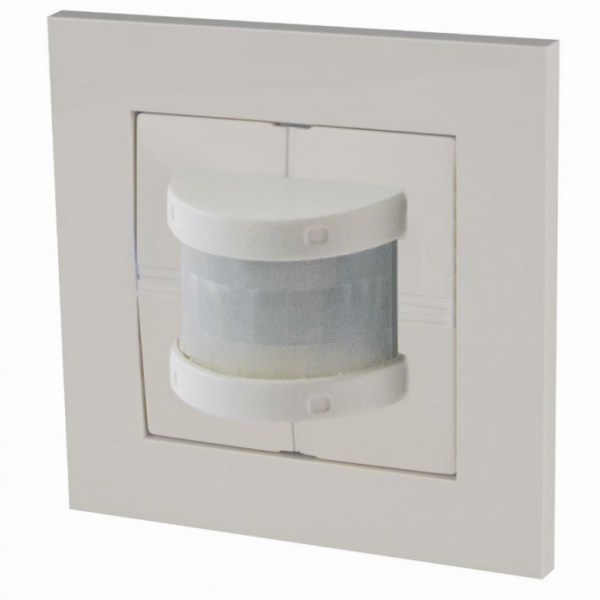

The SHA4XP150L is a 150° PIR sensor to detect presence and/or movement in indoor installations with built-in luxmeter, combining two products in one. It is part of the smart-house concept and can be used to control lights, rollerblinds, air-conditioning, intruder alarms and all the other functions supported by the smart-house system, in an automatic way depending on people-presence. This sensor is completely programmable via the SH tool.

Features

• Passive infrared presence/movement detector with built-in luxmeter

• Light measuring range: 0 to 20 klux

• Developed to fit into wall socket and frames from Fuga, Niko, Biticino

• Indoor applications

• Operating distance: max 10 m

• Supplied by bus, no external power required

• Programmable white and blue LED for presence and movement detection

• Delivered with 2 white and 1 black push-button covers
