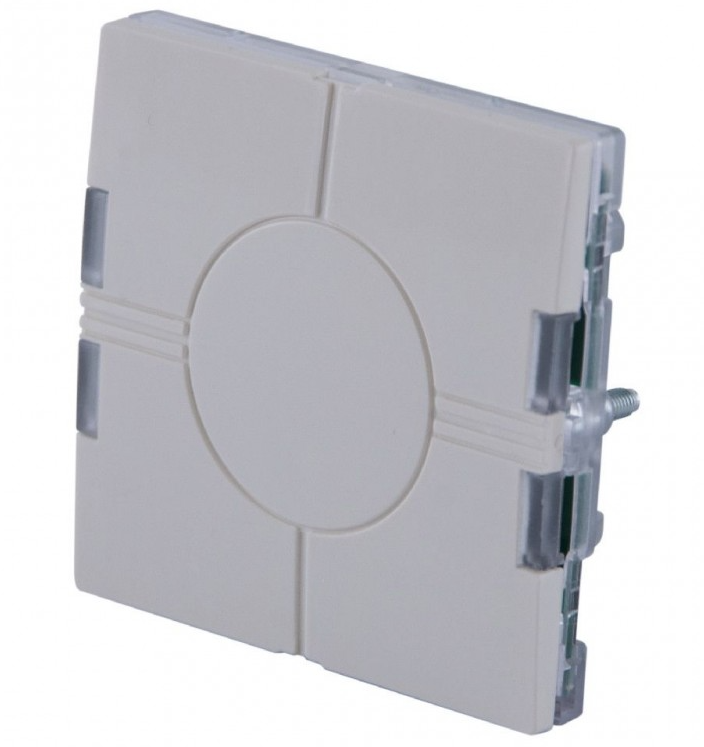

The SHE5XLS4TH is a light switch with 4 buttons and 4 LED outputs which integrates a temperature and a humidity sensor just in one item. It is developed to be mounted into the 55 x 55 wall socket and frame from Elko, Gira and Jung.

This light-switch with its integrated sensors is part of the smart-house concept for building automation applications. The push buttons can be used to activate/deactivate any function, while the inputs provided by the two sensors can be used to control temperature, fans or whatever other function where a temperature or humidity value is needed. The SHE5XLS4TH is fully programmable via the SH tool.

Features

• Light switch for building automation with integrated sensors for temperature and humidity

• Developed to fit into wall socket and frames from Elko, Gira and Jung

• 4 individually programmable pushbutton inputs

• Supplied by bus, no external supply required

• Delivered with 2 white and 1 black pushbutton covers

• White LEDs: programmable guide light function

• Blue LEDs: programmable function status

• Temperature range: -40 to +60°C

• Humidity range 5 to 95 %
