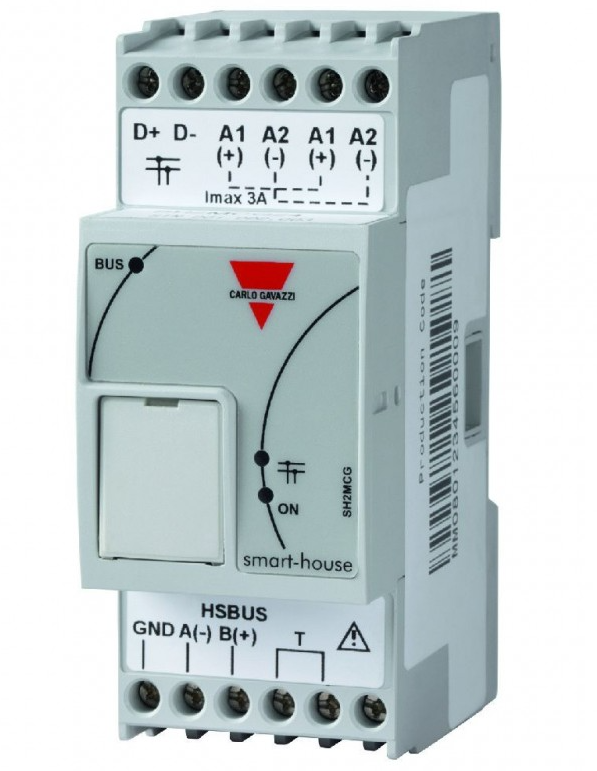

The master channel generator SH2MCG24 provides the channel generator output drive for one Smart Dupline® network in a smart-house system controlled by the Sx2WEB controller.

Each SH2MCG24 must have an address that has to be programmed using the Sx tool.

Benefits

• Integrated system. Dupline® is the brand name for Carlo Gavazzi’s 2-wire bus system.

• Cost reduction. The use of a bus system is a proven way to reduce installation costs – especially when the distance between I/O points are extensive.

• Fast and easy installation. Completely free topology, no special cable required, no screen or twist. It can go for 2 km and even further with repeaters.

• High noise immunity. Can run next to power cables.

• Scalability. The system can be progressively integrated with new modules according to the application needs.

• Modularity. The system is composed by many modules, powered by the bus, so that each installation can be precisely and easily sized.

Features

• Transmit digital and analogue data collected from the wide ranges of modules.

• Data are sent to the controller Sx2WEB24 that elaborates them according to the programmed logic.

• Up to 7 SH2MCG24 can be connected on the same network, taking into consideration the sum of SH2MCG24, SH2DUG24 and SH2WBU230x.

• Connection to Sx2WEB24 via internal bus or terminals via the high speed bus.
