Description

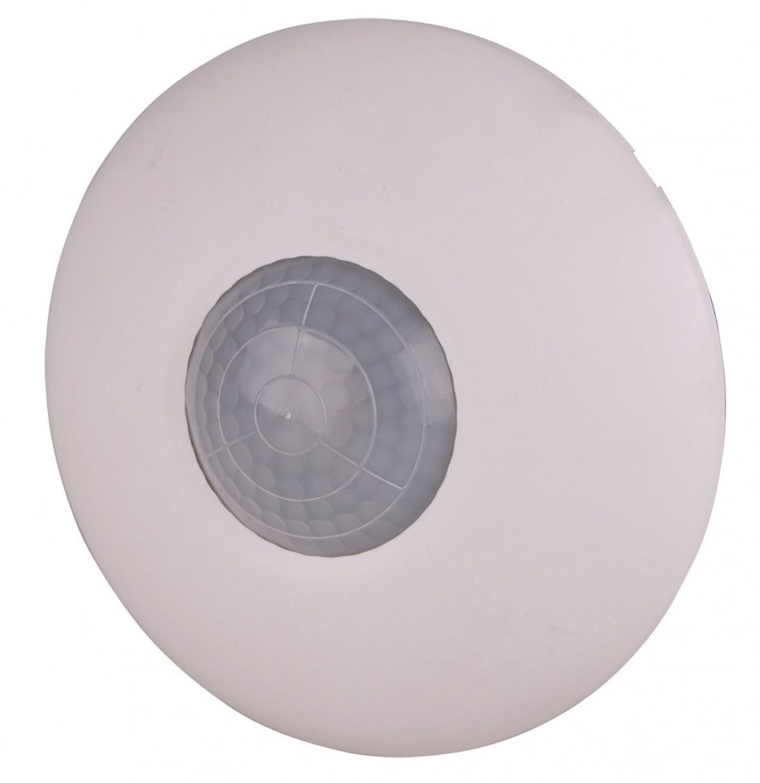

The SHSQP360L is a 360° PIR sensor to detect presence and/or movement in indoor installations with a built-in luxmeter, combining two products in one. It is part of the smart-house concept and can be used to control lights, rollerblinds, air-conditioning, intruder alarms and all the other functions supported by the smart-house system, in an automatic way depending on people-presence. This sensor is completely programmable via the Sx tool.
Features
• Passive infrared detector (PIR) with built-in luxmeter
• Detects movement and presence
• Light measuring range: 0 to 20 klux
• Indoor applications
• Smart-house output
• Operating distance: max. 7.5 m
• Operating angle: 360°
• LED indication
• Supplied by bus
• Ceiling-mount
