Description

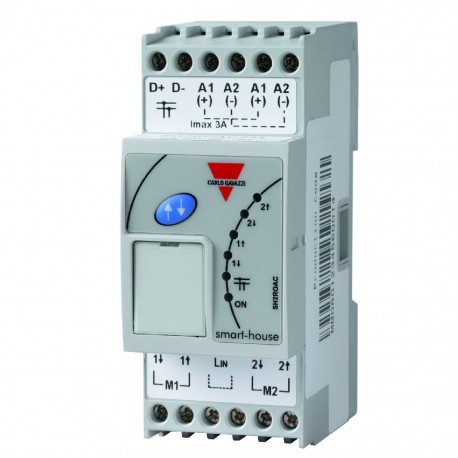

This is a 2-DIN relay output module to control AC rollerblind motors.
It has been developed to be connected to and controlled by the smart-house system controllers.
The rollerblind motor is driven by two relays in series: one to switch the motor ON/OFF and the second one to control the direction UP/DOWN.
These two relays are controlled in such a way to respect the motor timing before any reversing of the motor direction.
Features
• Up/down control for two AC rollerblind motors
• DC power supply
• Relay load 5A
• 2 DIN housing
• LED indication for power supply, Dupline® bus, motor up, motor down
• Connection to other cabinet modules via local bus
