Description

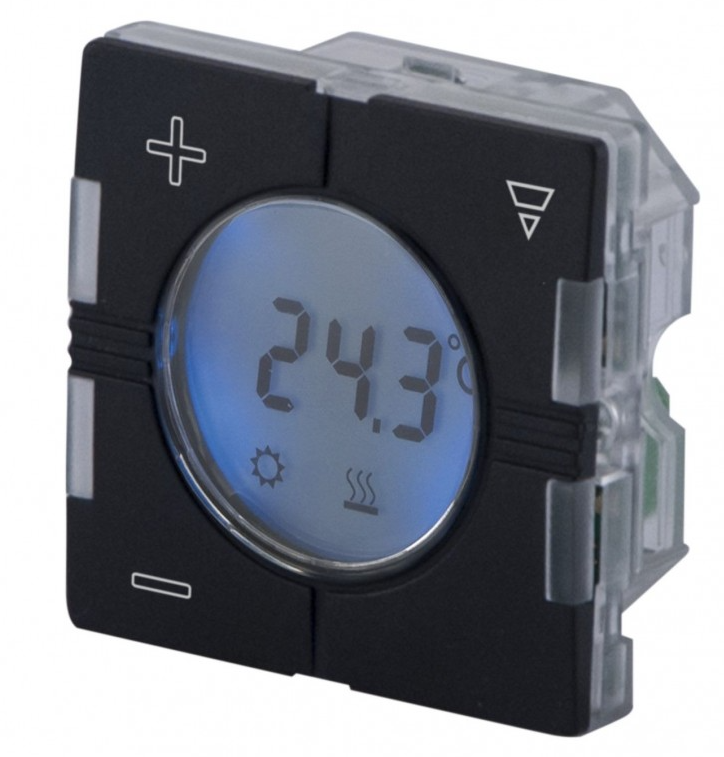

SHxxXLS2TEMDIS is a temperature display with 4 buttons and 4 LEDs.
It is developed to be mounted into a 55 x 55 and 44 x 44 wall socket.
Thanks to the TEMDIS display, the temperature setpoint can be changed very easily just clicking on the “+” and “-” keys.
The two right keys are fully programmable.
The TEMDIS is part of the smart Dupline concept for building automation applications.
Benefits
• Integrated system. Dupline® is the brand name for Carlo Gavazzi’s 2-wire bus system.
• Cost reduction. The use of a bus system is a proven way to reduce installation costs – especially when the distance between I/O points are extensive.
• Fast and easy installation. Completely free topology, no special cable required, no screen or twist. It can go for 2 km and even further with repeaters.
• High noise immunity. Can run next to power cables.
• Scalability. The system can be progressively integrated with new modules according to the application needs.
• Modularity. The system is composed by many modules, powered by the bus, so that each installation can be precisely and easily sized.
Features
• Shows current room temperature and shows outdoor temperature
• Turns on/off heating and cooling
• Programmable backlight
• Delivered with 2 white and 1 black pushbutton covers
spec for 44 X 44: https://sclsystem.creaworld.sg/wp-content/uploads/2024/04/SHA4XTEMDIS_EN.pdf
