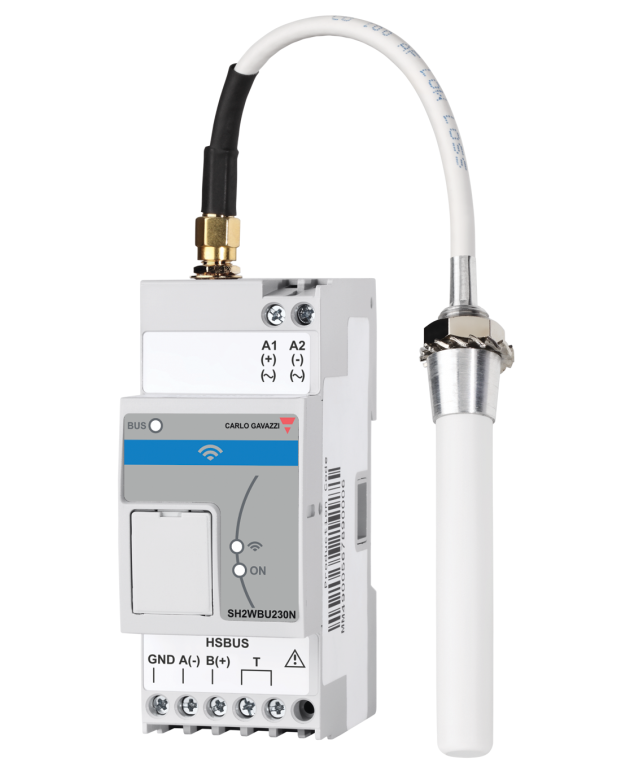

The wireless base unit SH2WBU230N generates the wireless network performing the functions of a wireless access point and router. The generated protocol is called WiDup and it is based on the standard IEEE 802.15.4 at 2.4 GHz.

It is part of the Smart Dupline system and it has to be used together with the controller UWP 3.0. Each UWP 3.0 can be connected to up to 7 sub-master generators (the sum of SH2MCG24, SH2DUG24 and SH2WBU230N is 7) in order to have up to 7 wired/ wireless networks.

All the devices are connected via an internal bus if they are in the same cabinet, or via terminals if they are mounted on different cabinets.

Each SH2WBU230N must have an address that has to be programmed using the UWP 3.0 tool.

Features

• WiDup, a wireless communication protocol, generator for home automation application

• Wireless transmission based on IEEE 802.15.4, @ 2.4 GHz

• Maximum slave number: 250

• Up to 7 SH2WBU230N can be connected on the same network

• Connection to UWP 3.0 via internal bus or terminals via the high speed bus.

• Dimension: 2-DIN module
