Description

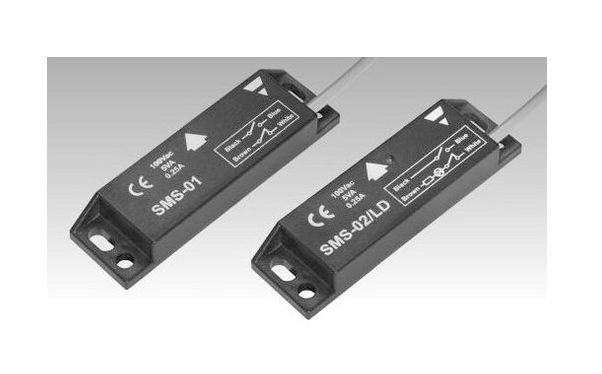

The safety magnetic sensors are particularly addressed to the safety gates that allow the entry to machines with dangerous movements and their risk category can be 4 (EN 954-1). They are provided with two contacts, 1 NO + 1 NC.
The SMS02S1 model has a series resistor on NO contact to avoid read welding problems. The SMS02LD model has a LED for signalling.
Features
• Safety Category 4 according to EN 954-1
• 1NO + 1NC outputs
• Cable output connection
• Rectangular housing
• Multiple Flux coding
• LED indication (SMS02LD only)
• Series resistor on NO contact (SMS02S1 only)
