This relay is designed for use in applications where low electromagnetic emission is essential.

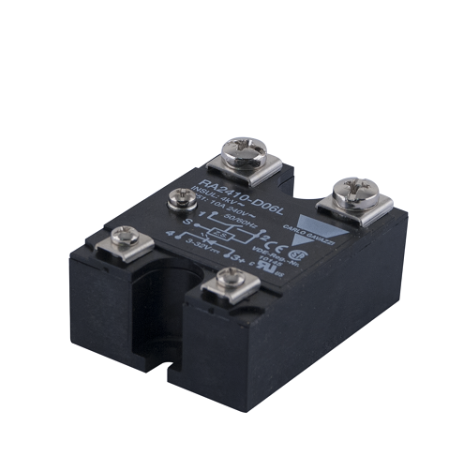

Today, household and electrical appliances, information technology and medical equipment must conform with the latest EN standards. These new EN standards define general and product related requirements for noise immunity and noise emission. The RA24..-D06L and RA40..-D08L are relays for applications where the noise emission must be low and where the customer does not want to relinquish all Solid State Relay features. The relay is available with zero crossing function. It is designed for resistive loads, i.e. power factor = 1.

Predestined applications for this relay are office machines, ovens and cookers for domestic and industrial use, theatre or stage lighting systems, film processing and copying machines or medical equipment.

Features

• AC Solid State Relay

• Zero switching

• For ohmic load applications

• Rated operational current: 10 and 25 AACrms

• Rated operational voltage: Up to 400 VACrms

• 10 A type meets CISPR 22 B requirements
