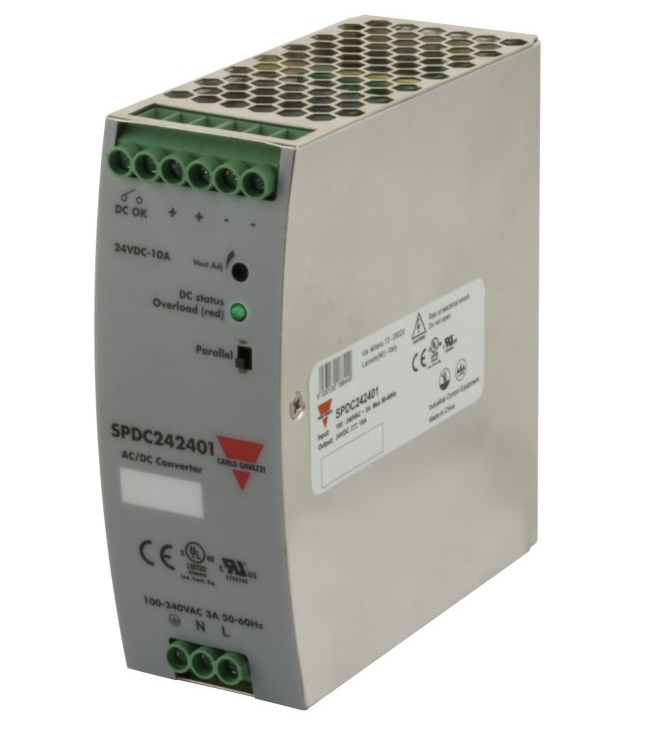

The SPDC power supplies is a range where high performance meets high quality in a compact frame. These power supplies are offered in 120W, 240W, 480W, and they have a universal input voltage range 85VAC to 264VAC and 130VDC to 350VDC.

The SPDC achieve a high energy efficiency of up to 94%, and can be connected in parallel to achieve twice the current. Reliability is guaranteed through the multiple integrated protections, and it also comes with built-in active PFC.

SPDC coupled compact dimensions with advance features to provide a power supply for all automation applications requiring reliability, quality and performance.

Benefits

• Reliable power in very compact dimensions. This SPDC has an ultra-slim DIN rail body, with up to 480W in only 70mm width of space

• Built-in active PFC. The power factor correction (PFC) circuit adjusts the power factor to 0.99@110Vac and 0.95@230Vac.

• Parallel function. The SPDC can easily be connected in parrallel to provide for increased power or used in redundancy operations.

• 150% Power Boost. The SPDC can provide 150% of the rated output power for up to 3 seconds, providing the extra power needed during critical startups.

• Universal AC, DC input range. SPDC Series can be powered with AC Voltage (85VAC to 264VAC) or with DC Voltage (130VDC to 350VDC).

• Reliable critical protection. Safety and reliability is guaranteed by the various output protections: Over Voltage (OVP), Over Load (OLP), Short Circuit (SCP) and Over Temperature (OTP).

• High efficiency and wide operating ambient temperature. The SPDC has a very high efficiency of up to 93.8%. The operating temperature range is, from -25°C to +60°C (without derating), and up to 70°C with -25% derating.

• Ease of installation. The SPDC can be installed in 5 different orientations, enabling the unit to fit easily into installation with limited space.

Features

• High Efficiency up to 93.8%

• In-built active PFC, PF>0.95

• Output options of 12VDC, 24VDC or 48VDC

• Universal input voltage range: 85VAC to 264VAC; 130VDC to 350VDC

• Bi-colour LED for Status, and DC-OK relay contact

• Parallel function
