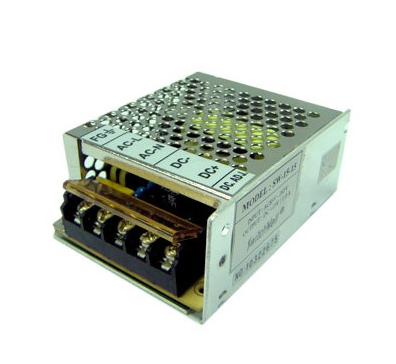

Single Output Switching Power Supply
Size (L×W×H): 90mm × 69mm × 37mm
Product Features:
- Compact size, light weight; Low price, high reliability
- International AC input range; built in EMI filter, Low ripple noise
- Short circuit/over voltage/overload protection
- High efficiency, low working temp
- 100% full load burn-in test
- ISO-9001:2000 manufacturer
- One year warranty
| Input voltage range: | Rated: AC85-265V, Input connection: 5p/10.0-M4 pitch terminal INPUT: AC-L, AC-N, FG |
| Input current (typical) | Rated：AC91mA，Range: AC75mA～235mA |
| Input voltage frequency | 47～63Hz |
| Inrush current | Cold start: 20A/10mS |
| Output range adjust | Voltage set point accuracy：<±2%；±10% output rated voltage |
| Max. Ripple noise | Vnor<24mV ；Vp-p100Hz<120mV；Vp-pmax<240mV |
| Line / Load regulation | Line:±0.5%; Load:±0.5% |
| Rated output power | 15W |
| Efficiency (typical) | 75% |
| Over load protection (output) | 120% |
| Input Over voltage protection | AC300V±5V, Range AC0~280V |
| Under load protection | AC150V±5V; transform to supply as AC Input OK |
| Setup, rise, hold up time | (SETUP TIME)≈200mS; (RISE TIME) ~50mS; (HOLD UP TIME) ~ 20mS |
| Withstand voltage | [Input-Output: AC1.5KV, Input-FG: AC1.5KV, Output-FG: AC0.5KV] 50Hz for 1min: Current limit<5mA |
| Temperature coefficient | ±0.05 [%/°C] |
| Storage temperature | -20°C ~ +85°C; 10% ~ 95%RH. Working Temp.: -10°C~+50°C; 20%~90%RH |
| Cooling | Natural cooling |
| Weight (typical) | 250g |
| Safety standard | Design refer to UL 1012 & 1950 requirement |
| Output connection | 5P/10.0-M4 pitch terminal block; OUTPUT: DC+; DC- |
| Model | Output |
| SW-15-5 | 5V, 0~3.0A |
| SW-15-12 | 12V, 0~1.3A |
| SW-15-15 | 15V, 0~1.0A |
| SW-15-24 | 24V, 0~0.7A
|
