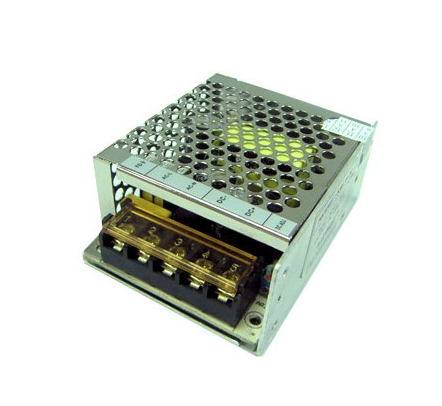

50 Watt Single Output Switching Power Supply
Size (L×W×H): 100mm × 83mm × 37mm
: 130mm × 99mm × 39mm
Product Features:
- Compact size, light weight; Low price, high reliability
- International AC input range; built in EMI filter, Low ripple noise
- Short circuit/over voltage/overload protection
- High efficiency, low working temp
- 100% full load burn-in test
- ISO-9001:2000 manufacturer
- One year warranty
Input voltage range: | Rated: AC85-265V, Input connection: 5p/10.0-M4 pitch terminal INPUT: AC-L, AC-N, FG |
Input current (typical) | Rated: AC: 220V: AC0.21A, Range: AC0.18A~0.55A |
Input voltage frequency | 47~63Hz |
Inrush current | Cold start: 20A/10mS |
Output range adjust | Voltage set point accuracy:<±2%;±10% output rated voltage |
Max. Ripple noise | Vnor<30mV ;Vp-p100Hz<150mV;Vp-pmax<300mV |
Line / Load regulation | Line:±0.5%; Load:±0.5% |
Rated output power | 50W |
Efficiency (typical) | 85% |
Over load protection (output) | 110% |
Over voltage protection… | AC300V±5V |
Under load protection | AC150V±5V; transform to supply as AC Input OK |
Setup, rise, hold up time | (SETUP TIME)≈200mS; (RISE TIME) ~50mS; (HOLD UP TIME) ~ 20mS |
Withstand voltage | [Input-Output: AC1.5KV, Input-FG: AC1.5KV, Output-FG: AC0.5KV] 50Hz for 1min: Current limit<5mA |
Temperature coefficient | ±0.05 [%/°C] |
Storage temperature | -20°C ~ +85°C; 10% ~ 95%RH. Working Temp.: -10°C~+50°C; 20%~90%RH |
Cooling | Natural cooling |
Weight (typical) | 350g |
Safety standard | Design refer to UL 1012 & 1950 requirement |
Output connection | 5P/10.0-M4 pitch terminal block; OUTPUT: DC+; DC- |
Model | Output |
SW-50-5 | 5V, 0~10A |
SW-50-12 | 12V, 0~4.2A |
SW-50-15 | 15V, 0~3.4A |
SW-50-24 | 24V, 0~2.1A |
SKJB-080-1BA1 CE | 24V, 0~2.1A |
