Description

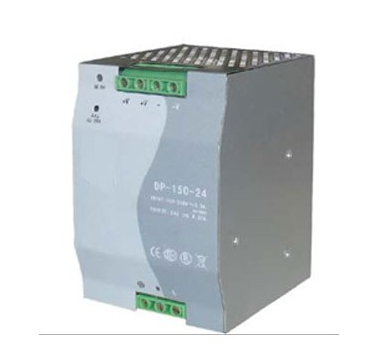

Din-Rail Power Supply 150 Watt Single Output
Size (L×W×H): 100mm× 85.5mm×125.2mm
Approval: CE
Product features:
– Universal AC input/ full range
– PF>0.99@115VAC
– High efficiency, high reliability
– Power on indication
– Cooling by air convection
– Protections: Overload /Over voltage /Over temperature/ Short circuit
– 100% full load burn-in test
– Installed on Din rail TS35/7.5 or 15
– One year warranty
| Specifications: | |
| AC input voltage | 88~264VAC |
| Inrush current | 40A@230VAC |
| 20A@115VAC full load, cold start | |
| Overload protection | 105%- 150% auto-recovery, constant current limiting |
| Over voltage protection | 120%-140% rated output voltage |
| Setup, rise,hold up time | 500ms,70ms,36ms at full load and 230VAC |
| Operating temperature | -10 to 60°C(refer to output derating curve) |
| Safety & EMC standard | UL508 |
| EN55022 class B | |
| EN61000-3-2,3 | |
| ENV 50204 | |
| EN61000-6-2 | |
| EN61000-4-2,3,4,5,6,8,11 | |
| MTBF | 105 h at 25°C |
| Withstand Voltage | I/P-O/P:3KV |
| I/P-FG:1.5KV.1min | |
| O/P-FG:0.5KV.1min | |
| Connection | I/P:3 poles |
| O/P:4 poles screw DIN terminal | |
| Weight | 0.79Kg/pcs |
|
P/N |
Output |
Tol. |
R&N |
Effi. |
DC adjustment range |
|
SW-DP-150-12 |
12V,0~13A |
±2% |
80 mV |
86% |
12~14V |
|
SW-DP-150-24 |
24V,0~6.3A |
±1% |
80 mV |
88% |
24~28V |
|
SW-DP-150-48 |
48V,0~3.2A |
±1% |
100 mV |
89% |
48~53V |
