Description

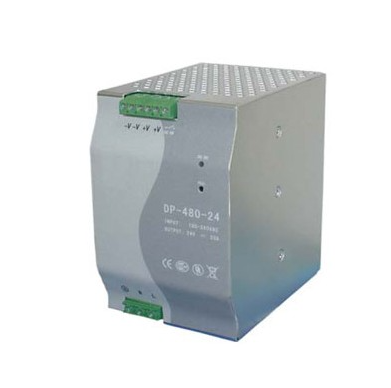

Din-Rail Power Supply 480 Watt Single Output
Size(L×W×H): 121mm×83mm×124mm
Approvals: CE, UL pending
Product features:
– Universal AC input/ full range
– PF>0.95@115VAC,>0.925@230VAC
– High efficiency, high reliability
– Power good indication
– Cooling by air convection
– Protections: Overload /Over voltage /Short circuit / Over temperature
– 100% full load burn-in test
– One year warranty
Specifications: | |
AC input voltage | 88~264VAC |
Inrush current | 20A@230VAC |
12A@115VAC full load, cold start | |
Overload protection | 105% ~ 150% constant current limiting, AC restart |
Over voltage protection | 120%~140 % rated output voltage |
Operating temperature | -25 to +55°Cwithout derating |
55 to 70°C limited 2 hours | |
Safety standard | UL508 |
EMC standard | EN55022 class B |
EN61000-3-2,3 | |
EN61000-6-2 | |
ENV 50204 | |
EN61000-4-2,3,4,5,6,8,11 | |
MTBF | 105 h at 25°C |
Withstand voltage | I/P-O/P:3KV.1min |
I/P-FG:1.5KV.1min | |
O/P-FG:0.5KV.1min | |
Connection | I/P:3 poles |
O/P: 6 poles screw DIN terminal | |
Weight | 1.30Kg/pcs |
P/N |
Output |
Tol. |
R&N |
Effi. |
DC adjustment range |
SW-DP-480-24 |
24V,0~20A |
±1% |
100mV |
90% |
24~28V |
SW-DP-480-48 |
48V,0~10A |
±1% |
150mV |
91% |
48~53V |
