Description

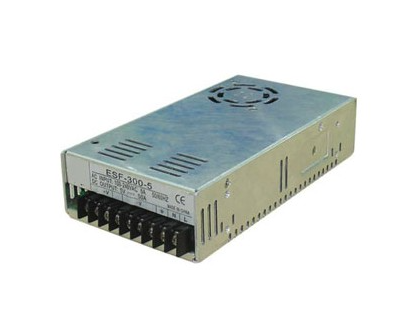

Power Supply With PFC 300 Watt Single Output (With PFC)
Size(L×W×H): 215mm×115mm×50mm
Approval: CE
Product features:
– Universal AC input/ Full range
– PF>0.98 at 115VAC PF>0.95 at 230VAC
– Power on indication
– Fan cooling
– Protections: Overload/Short circuit/Over voltage/ Over temperature
– 100% full load burn-in test
– One year warranty
Specifications | |
AC input voltage | 88~264VAC, Nominal 100~240VAC |
Input frequency | 47~63Hz |
Inrush current | 60A @230VAC full load cold start 30A @110VAC full load cold start |
hold up time | 20ms |
Over current protection | 105~150% |
Working temperature | 0 to 40°C |
Safety standard | UL60950-1 |
EMC standard | EN55022 class B EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11 |
MTBF | 105 h at 25°C |
Withstand Voltage | I/P-O/P1.5KV, 1min/5mA I/P-FG:1.5KV, 1min/5mA |
Weight | 1.1Kg/pcs |
P/N |
Output |
Tol. |
R&N |
Effi. |
Load Regulation |
Line Regulation |
SW-ESF-300-5 | 5V,50A |
2% |
150mV |
75% |
2% |
2% |
SW-ESF-300-12 | 12V,25A |
2% |
150mV |
79% |
1% |
1% |
SW-ESF-300-24 | 24V,12.5A |
1% |
150mV |
83% |
1% |
1% |
SW-ESF-300-48 | 48V,6.2A |
1% |
240mV |
85% |
1% |
1% |
