Description

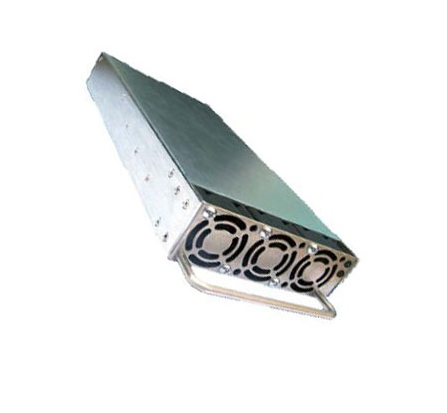

1U Standard Power Supply 1600 Watt Single Output
Size(L×W×H): 292.6mmx140.7mmx41.4mm
Product feature:
– 1.63” Low Profile
– High Efficiency at 89% Typical
– Active PFC Meets EN61000-3-2
– Fan Speed Control Signal
– Standby Voltage -5VDC @ 500mA
– Protection: Over Temperature, Over load, and Over Voltage Protection
– N+1 PSU Hot Swap Redundant
– Remote Voltage Sense
– PS ON/OFF Remote Control (Inhibit PSU by Opening the pin)
– Power supply status indicators
– I2C protocol alarms, status, & control
– Connector CN1: Positronic PCIH47M400A1 or equivalent
– One Year Warranty
Specifications: | |
AC input voltage range | 90~264V AC |
Input frequency | 47~63HZ |
Inrush current | 40A Max. |
EMI | CISPR/FCC Class B |
Withstand voltage | I/P: 4242Vdc |
Leakage current | 3.5mA max |
Total rated output power: | 1200W (@90-132Vac) |
1600W (@180-264Vac) | |
Hold-up time | 20mS typ |
Operating temperature: | 0~70°C |
Storage temperature: | -40~85°C |
Weight: | 2.58kg/pcs |
Model |
Output Voltage |
Output Current |
Ripple & Noise |
Voltage Accuracy |
Line Reg. |
Load Reg. |
|
Rated@180-264Vac |
Rated@90-132Vac |
||||||
SW-ESFG-1600-12 |
+12V |
133.4 |
100 |
1% |
±1% |
±1% |
±1% |
SW-ESFG-1600-24 |
+24V |
66.7 |
50 |
1% |
±1% |
±1% |
±1% |
SW-ESFG-1600-36 |
+36V |
44.5 |
33.4 |
1% |
±1% |
±1% |
±1% |
SW-ESFG-1600-48 |
+48V |
33.4 |
25 |
1% |
±1% |
±1% |
±1% |
