Description

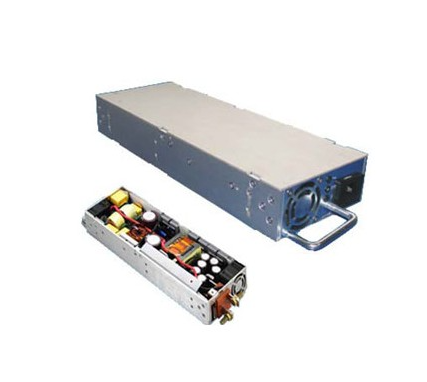

1U Standard Power Supply 750 Watt Single Output
Size(L*W*H): 280mmx101.5mmx41.9mm(±1mm)
Product features:
– 1.65” Low profile, high power density
– Universal input: 90 ~ 264Vac
– Active PFC meets EN61000-3-2
– High efficiency over 91% typical
– Remote voltage sense
– Fan speed control with temperature
– +5V stand-by output
– DC OK signal (power good, logic high)
– PS ON/OFF remote control
– Two years warranty
| Specifications: | |
| AC input voltage range | 90~264V AC |
| Input frequency | 47~63HZ |
| Inrush current | 50A Max. |
| EMI | CISPR/FCC Class B |
| Withstand voltage | I/P-O/P: 2KVAC |
| I/P-FG:1.5KVAC | |
| O/P-FG:0.5KVAC | |
| Leakage current | 3.5mA max |
| Hold-up time | 20mS typ |
| Operating temperature | -10~65°C |
| Storage temperature | -40~85°C |
| Weight | 1.64Kg/pcs |
|
Model |
Output Voltage |
Output Current (A) |
Voltage Accuracy*2 |
Line Reg.*3 |
Voltage Adj.range |
Load Reg.*4 |
Efficiency |
|
|
Rated |
Min. |
|||||||
|
SW-ESFG-750-12 |
+12V |
62.5 |
0 |
±2.0% |
±0.5% |
11.4~13.2 |
±1% |
TBD |
|
SW-ESFG-750-15 |
+15V |
50 |
0 |
±2.0% |
±0.5% |
14.3~16.5 |
±1% |
TBD |
|
SW-ESFG-750-24 |
+24V |
31.2 |
0 |
±2.0% |
±0.5% |
22.8~26.4 |
±1% |
TBD |
|
SW-ESFG-750-36 |
+36V |
20.8 |
0 |
±2.0% |
±0.5% |
34.2~39.6 |
±1% |
92% |
|
SW-ESFG-750-48 |
+48V |
15.6 |
0 |
±2.0% |
±0.5% |
45.6~52.8 |
±1% |
92% |
| Standby Output Voltage | ||||||||
|
All |
+5.0V |
1 |
0 |
±2.0% |
—- |
—- |
|
|
