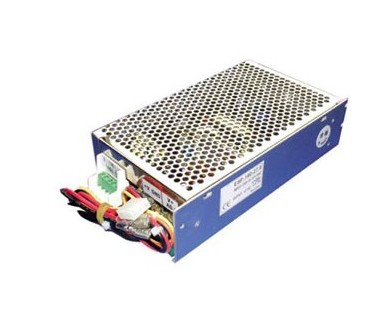

SW-ESP-140 Power Supply With Charging Function 140 Watt Single Output
Loading...
Description
Power Supply With Charging Function 140 Watt Single Output (230V AC input only)
Size(L×W×H): 200mm×110mm×50mm
Approval: CE
Product features:
– 230VAC input only
– Power on indication
– Metal case
– Protections: Overload/Short circuit
– Battery reverse charge protection
– 100% full load burn in test
– One year warranty
| Specifications: | |
| AC input voltage: | 195~253 VAC |
| Input frequency: | 50/60Hz |
| Inrush Current: | 40A@ 230VAC full load cold start |
| Hold up time: | 20 ms at 230VAC full load |
| Overload protection: | 300% Io |
| Operating temperature: | 0 to 45°C |
| Storage temperature: | -20°C to 70°C |
| Operating Humidity: | 5%~90% RH, non-condensing |
| Safety standard: | EN60950 EN501301-4 EN50081 EN54-4:1997 |
| EMC standard: | EN55022 |
| Withstand Voltage: | I/P-OP:3KVAC/min |
| I/P-FG:1.5KVAC/min | |
| O/P-FG: 0.5KVAC/min | |
| No damage | |
| Cutout current: 10 mA max | |
| Connection: | I/P:DG128 three position insulated terminal block |
| O/P: DG128 two position insulated terminal block | |
| MTBF: | 105 h at 25°C |
| Weight: | 0.9Kg/pcs |
|
P/N |
DC Output |
Tol. |
R&N |
Effi. |
Line Regulation |
|
SW-ESP-140-13.8 |
13.8VDC 0~10A |
±2% |
120mV |
76% |
±1% |
|
SW-ESP-140-27.6 |
27.6VDC 0~5A |
±2% |
240mV |
80% |
±1% |
